SH50C-5.0-36

AlfaMag Electronics (AMGIS)

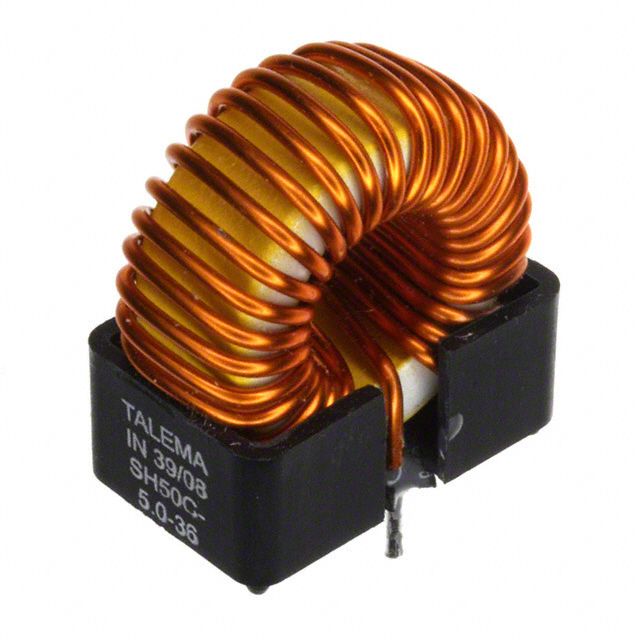

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SH50C-5.0-36
Manufacturer/Brand:	AlfaMag Electronics (AMGIS)
Product description	FIXED IND 36UH 5A 20 MOHM TH
Datasheets:	SH50C-5.0-36.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	25306 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 25306 pcs

Reference Price (In US Dollars)

100 pcs: $1.527

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.527

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SH50C-5.0-36

Part Number	SH50C-5.0-36	Manufacturer	AlfaMag Electronics (AMGIS)
Description	FIXED IND 36UH 5A 20 MOHM TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	25306 pcs	Data sheet	SH50C-5.0-36.pdf
Type	Toroidal	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.949" L x 0.598" W (24.10mm x 15.20mm)
Shielding	Unshielded	Series	SH50
Ratings	-	Q @ Freq	-
Packaging	Tray	Package / Case	Radial
Other Names	SH50C-3.0-68 SH50C5036 TE2151	Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	Iron Powder	Manufacturer Standard Lead Time	17 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	10kHz
Inductance	36µH	Height - Seated (Max)	1.059" (26.90mm)
Frequency - Self Resonant	-	Detailed Description	36µH Unshielded Toroidal Inductor 5A 20 mOhm Max Radial
DC Resistance (DCR)	20 mOhm Max	Current Rating	5A
Current - Saturation	-
