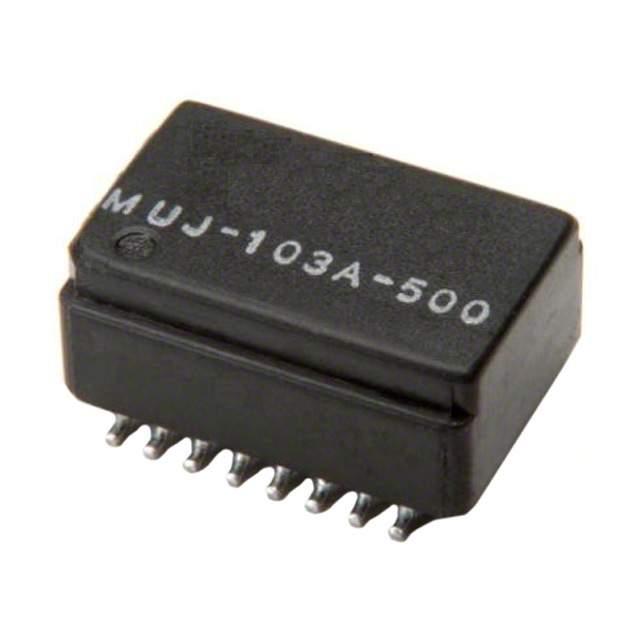

MUJ-103A-500

AlfaMag Electronics (AMGIS)

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MUJ-103A-500
Manufacturer/Brand:	AlfaMag Electronics (AMGIS)
Product description	INTERFACE MODULE 1:1:2:2 SMD
Datasheets:	MUJ-103A-500.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10892 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 10892 pcs

Reference Price (In US Dollars)

1 pcs: $3.58

10 pcs: $2.782

25 pcs: $2.707

50 pcs: $2.331

100 pcs: $2.225

250 pcs: $2.18

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.58

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MUJ-103A-500

Part Number	MUJ-103A-500	Manufacturer	AlfaMag Electronics (AMGIS)
Description	INTERFACE MODULE 1:1:2:2 SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10892 pcs	Data sheet	MUJ-103A-500.pdf
Weight	-	Turns Ratio - Primary:Secondary	1:1:2:2
Transformer Type	Isolation and Data Interface (Encapsulated)	Size / Dimension	0.504" L x 0.346" W (12.80mm x 8.80mm)
Series	-	Packaging	Original-Reel®
Other Names	TE2298DKR	Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	2 (1 Year)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	25mH	Height - Seated (Max)	0.246" (6.25mm)
Energy Time (E.T.)	-
