VF4-15H13

Agastat Relays / TE Connectivity

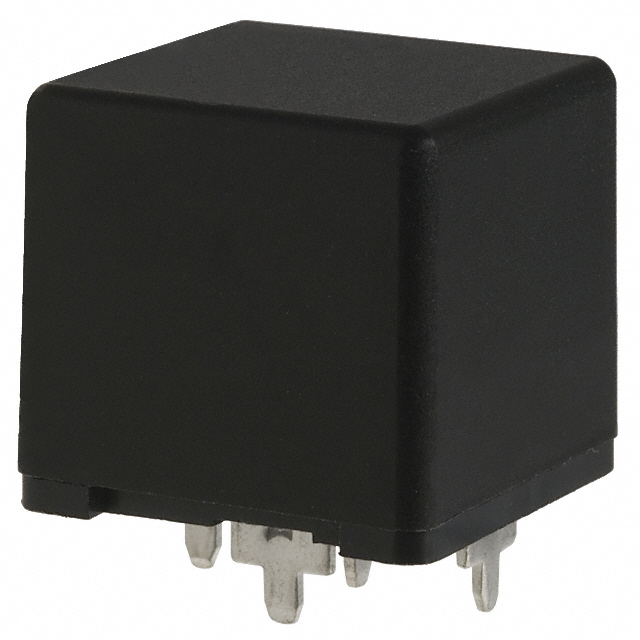

Image may be representation. See specifications for product details.

Product Overview

Part Number:	VF4-15H13
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	RELAY GEN PURPOSE SPDT 40A 24V
Datasheets:	VF4-15H13.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	29699 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 29699 pcs

Reference Price (In US Dollars)

300 pcs: $1.087

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.087

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of VF4-15H13

Part Number	VF4-15H13	Manufacturer	Agastat Relays / TE Connectivity
Description	RELAY GEN PURPOSE SPDT 40A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	29699 pcs	Data sheet	VF4-15H13.pdf
Turn On Voltage (Max)	14.4 VDC	Turn Off Voltage (Min)	2.4 VDC
Termination Style	PC Pin	Switching Voltage	14VDC - Nom
Series	VF4	Release Time	2ms
Relay Type	General Purpose	Packaging	Bulk
Other Names	1393302-8 VF415H13/X819 VF415H13/X819-ND	Operating Temperature	-40°C ~ 125°C
Operate Time	7ms	Mounting Type	Through Hole
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Detailed Description	General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
Contact Rating (Current)	40A	Contact Material	Silver Nickel (AgNi)
Contact Form	SPDT (1 Form C)	Coil Voltage	24VDC
Coil Type	Non Latching	Coil Resistance	360 Ohms
Coil Power	1.6 W	Coil Current	66.7mA
