PT5S7RC4

Agastat Relays / TE Connectivity

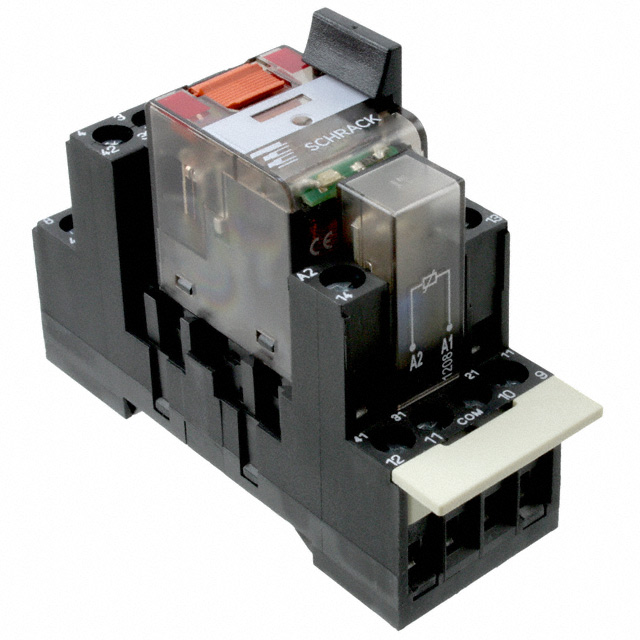

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PT5S7RC4
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	RELAY GEN PURPOSE 4PDT 6A 24V
Datasheets:	PT5S7RC4.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2933 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 2933 pcs

Reference Price (In US Dollars)

1 pcs: $11.35

10 pcs: $10.783

25 pcs: $10.215

50 pcs: $9.648

100 pcs: $9.08

250 pcs: $8.513

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$11.35

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PT5S7RC4

Part Number	PT5S7RC4	Manufacturer	Agastat Relays / TE Connectivity
Description	RELAY GEN PURPOSE 4PDT 6A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2933 pcs	Data sheet	PT5S7RC4.pdf
Turn On Voltage (Max)	19.2 VAC	Turn Off Voltage (Min)	7.2 VAC
Termination Style	Screw Terminal	Switching Voltage	240VAC - Max
Series	PT, SCHRACK	Relay Type	General Purpose with Socket
Packaging	Bulk	Other Names	7-1415075-1 7-1415075-1-ND 714150751 PB1533 PT5S7RC4-ND
Operating Temperature	-40°C ~ 70°C	Mounting Type	DIN Rail
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	17 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	LED Indicator, Mechanical Indicator, Test Button
Detailed Description	General Purpose with Socket Relay 4PDT (4 Form C) 24VAC Coil DIN Rail	Contact Rating (Current)	6A
Contact Material	Silver Nickel (AgNi)	Contact Form	4PDT (4 Form C)
Coil Voltage	24VAC	Coil Type	Non Latching
Coil Resistance	192 Ohms	Coil Power	1 VA
