PE514005

Agastat Relays / TE Connectivity

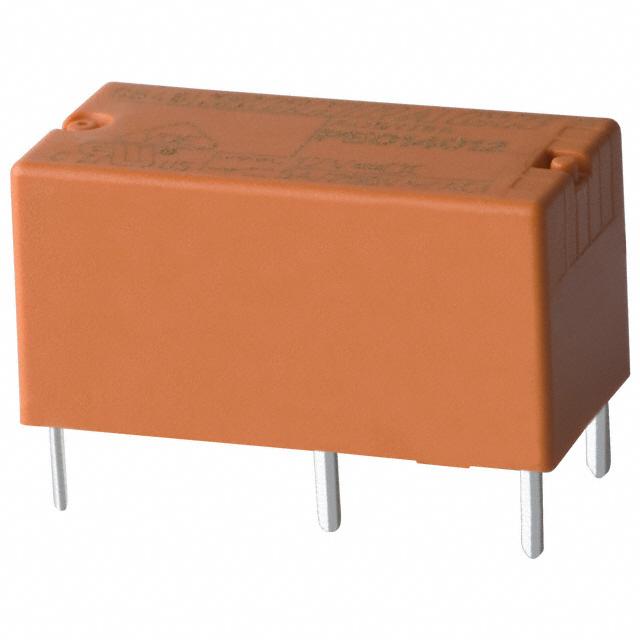

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PE514005
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	RELAY GEN PURPOSE SPDT 5A 5V
Datasheets:
RoHs Status	Lead free / RoHS Compliant
Stock Condition	19984 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 19984 pcs

Reference Price (In US Dollars)

1 pcs: $1.51

10 pcs: $1.414

25 pcs: $1.257

50 pcs: $1.194

100 pcs: $1.131

250 pcs: $1.006

500 pcs: $0.943

1000 pcs: $0.88

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.51

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PE514005

Part Number	PE514005	Manufacturer	Agastat Relays / TE Connectivity
Description	RELAY GEN PURPOSE SPDT 5A 5V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19984 pcs	Data sheet
Turn On Voltage (Max)	3.8 VDC	Turn Off Voltage (Min)	0.5 VDC
Termination Style	PC Pin	Switching Voltage	400VAC - Max
Series	PE, SCHRACK	Release Time	8ms
Relay Type	General Purpose	Packaging	Tube
Other Names	1-1393219-7 1-1393219-7-ND PB2051 PE514005-ND	Operating Temperature	-40°C ~ 85°C
Operate Time	8ms	Mounting Type	Through Hole
Manufacturer Standard Lead Time	28 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Sealed - Fully	Detailed Description	General Purpose Relay SPDT (1 Form C) 5VDC Coil Through Hole
Contact Rating (Current)	5A	Contact Material	Silver Nickel (AgNi)
Contact Form	SPDT (1 Form C)	Coil Voltage	5VDC
Coil Type	Non Latching	Coil Resistance	125 Ohms
Coil Power	200 mW	Coil Current	40.0mA
