PCN-124D3MHZ,000

Agastat Relays / TE Connectivity

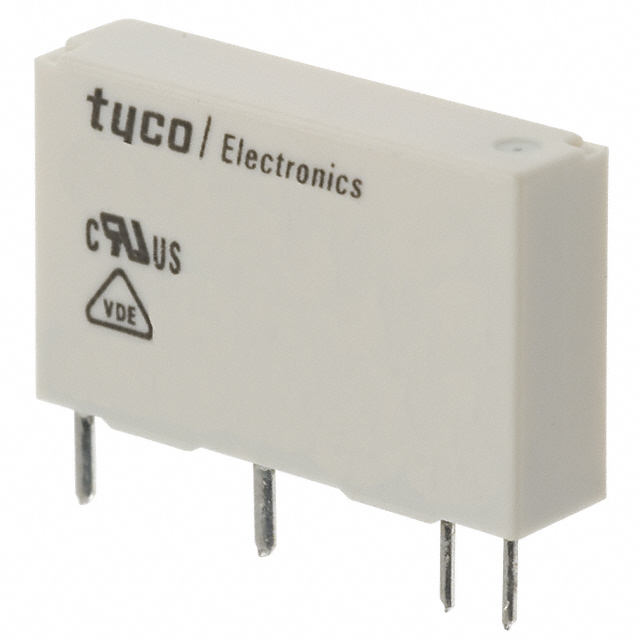

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PCN-124D3MHZ,000
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	RELAY GEN PURPOSE SPST 3A 24V
Datasheets:	1.PCN-124D3MHZ,000.pdf 2.PCN-124D3MHZ,000.pdf 3.PCN-124D3MHZ,000.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	35052 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 35052 pcs

Reference Price (In US Dollars)

1 pcs: $1.113

10 pcs: $1.044

25 pcs: $0.928

50 pcs: $0.881

100 pcs: $0.835

250 pcs: $0.742

500 pcs: $0.696

1000 pcs: $0.649

5000 pcs: $0.626

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.113

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PCN-124D3MHZ,000

Part Number	PCN-124D3MHZ,000	Manufacturer	Agastat Relays / TE Connectivity
Description	RELAY GEN PURPOSE SPST 3A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	35052 pcs	Data sheet	1.PCN-124D3MHZ,000.pdf 2.PCN-124D3MHZ,000.pdf 3.PCN-124D3MHZ,000.pdf
Turn On Voltage (Max)	16.8 VDC	Turn Off Voltage (Min)	2.4 VDC
Termination Style	PC Pin	Switching Voltage	277VAC, 125VDC - Max
Series	PCN, SCHRACK	Release Time	3ms
Relay Type	General Purpose	Packaging	Tube
Other Names	3-1461491-6 PB906 PCN124D3MHZ,000 PCN124D3MHZ000	Operating Temperature	-30°C ~ 70°C
Operate Time	8ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	26 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Sealed - Fully
Detailed Description	General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole	Contact Rating (Current)	3A
Contact Material	Silver Nickel (AgNi)	Contact Form	SPST-NO (1 Form A)
Coil Voltage	24VDC	Coil Type	Non Latching
Coil Resistance	4.8 kOhms	Coil Power	120 mW
Coil Current	5.0mA
