PCH-105L2M,000

Agastat Relays / TE Connectivity

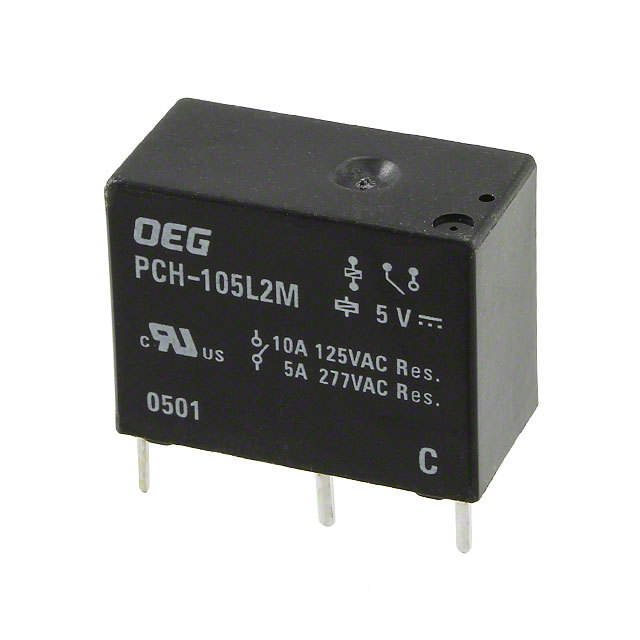

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PCH-105L2M,000
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	RELAY GEN PURPOSE SPST 5A 5V
Datasheets:	1.PCH-105L2M,000.pdf 2.PCH-105L2M,000.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	48837 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 48837 pcs

Reference Price (In US Dollars)

1 pcs: $0.73

10 pcs: $0.685

25 pcs: $0.609

50 pcs: $0.578

100 pcs: $0.548

250 pcs: $0.487

500 pcs: $0.457

1000 pcs: $0.426

5000 pcs: $0.411

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.73

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PCH-105L2M,000

Part Number	PCH-105L2M,000	Manufacturer	Agastat Relays / TE Connectivity
Description	RELAY GEN PURPOSE SPST 5A 5V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	48837 pcs	Data sheet	1.PCH-105L2M,000.pdf 2.PCH-105L2M,000.pdf
Turn On Voltage (Max)	3.75 VDC	Turn Off Voltage (Min)	0.25 VDC
Termination Style	PC Pin	Switching Voltage	277VAC, 30VDC - Max
Series	PCH, OEG	Release Time	5ms
Relay Type	General Purpose	Packaging	Bulk
Other Names	1461352-2 PB1828 PCH-105L2M,000-ND	Operating Temperature	-40°C ~ 85°C
Operate Time	10ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Insulation - Class F, Sealed - Flux Protection
Detailed Description	General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole	Contact Rating (Current)	5A
Contact Material	Silver Tin Oxide (AgSnO)	Contact Form	SPST-NO (1 Form A)
Coil Voltage	5VDC	Coil Type	Non Latching
Coil Resistance	125 Ohms	Coil Power	200 mW
Coil Current	40.0mA
