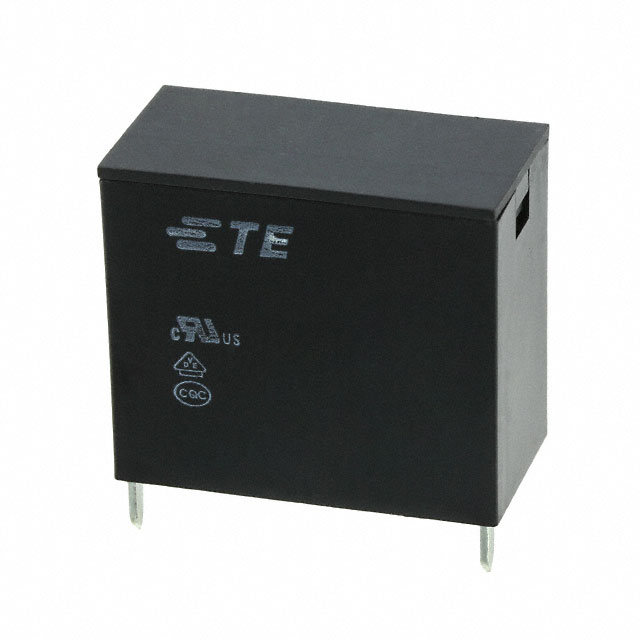

Agastat Relays / TE Connectivity
| Part Number | PCFN-124H2MS,02000 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 26A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14618 pcs | Data sheet | 1.PCFN-124H2MS,02000.pdf2.PCFN-124H2MS,02000.pdf |
| Turn On Voltage (Max) | 16.8 VDC | Turn Off Voltage (Min) | 2.4 VDC |
| Termination Style | PC Pin | Switching Voltage | 277VAC - Max |
| Series | PCFN Solar, OEG | Release Time | 10ms |
| Relay Type | General Purpose | Packaging | Tube |
| Other Names | 2071169-2 PB1980 PCFN-124H2MS |
Operating Temperature | -25°C ~ 75°C |
| Operate Time | 20ms | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 23 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Insulation - Class F, Sealed - Flux Protection |
| Detailed Description | General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole | Contact Rating (Current) | 26A |
| Contact Material | Silver Tin Oxide (AgSnO) | Contact Form | SPST-NO (1 Form A) |
| Coil Voltage | 24VDC | Coil Type | Non Latching |
| Coil Resistance | 384 Ohms | Coil Power | 1.5 W |
| Coil Current | 62.5mA |
