Agastat Relays / TE Connectivity
| Part Number | MRJE3404 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|

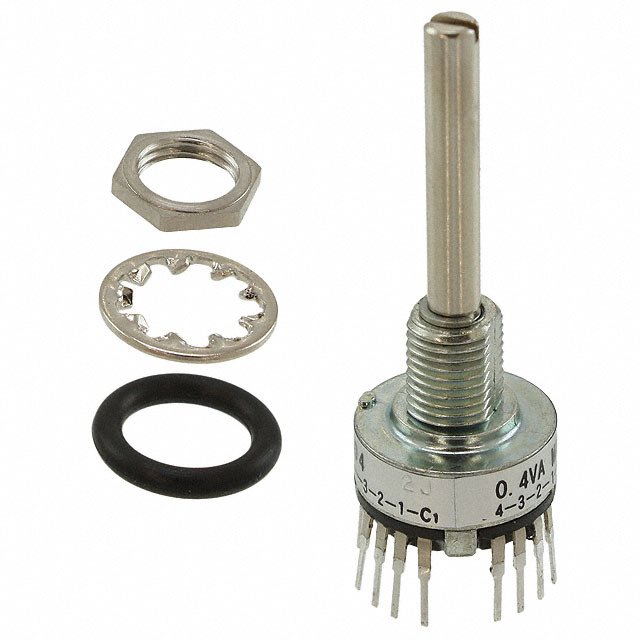

| Description | SWITCH ROTARY 4POS 0.4VA 20V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2492 pcs | Data sheet | MRJE3404.pdf |
| Voltage Rating - DC | 20V | Voltage Rating - AC | 20V |
| Termination Style | PC Pin | Series | MRJ |
| Panel Cutout Dimensions | - | Other Names | 1825537-3 1825537-3-ND 18255373 450-1807 MRJE3404-ND |
| Operating Force | 10gfm | Number of Positions | 4 |
| Number of Poles per Deck | 3 | Number of Decks | 1 |
| Mounting Type | Panel Mount, Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 20 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Index Stops | Fixed | Features | Epoxy Sealed Terminals |
| Detailed Description | Rotary Switch 4 Position 3P4T 0.4VA (AC/DC) 20VAC Panel Mount, Through Hole | Depth Behind Panel | 8.13mm |
| Current Rating | 0.4VA (AC/DC) | Contact Timing | Non-Shorting (BBM) |
| Contact Material | Nickel | Contact Finish | Gold |
| Circuit per Deck | 3P4T | Angle of Throw | 30° |
| Actuator Type | Round (3.17mm Dia), Slotted | Actuator Length | 19.00mm |
