Agastat Relays / TE Connectivity

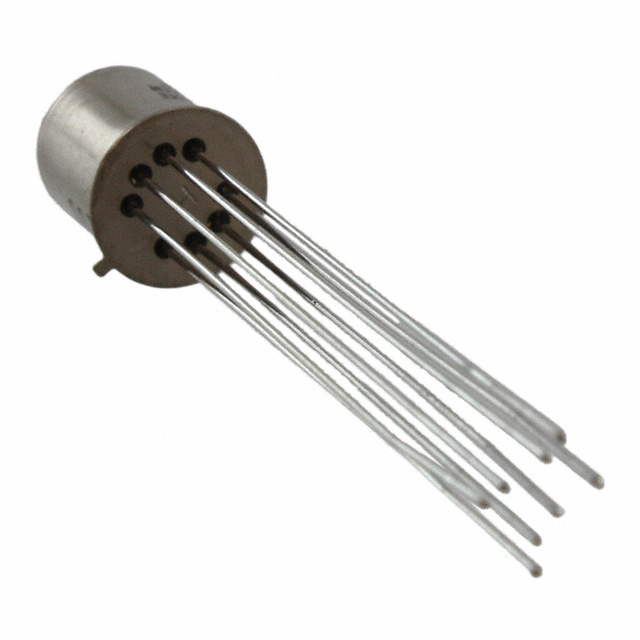

| Part Number | JMSWD-5XM | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE DPDT 1A 28V | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 891 pcs | Data sheet | JMSWD-5XM.pdf |
| Turn On Voltage (Max) | 2.6 VDC | Turn Off Voltage (Min) | 0.23 VDC |
| Termination Style | PC Pin | Switching Voltage | 28VDC - Nom |
| Series | Military, MIL-R-39016/16, MS, CII | Release Time | 7.5ms |
| Relay Type | General Purpose | Packaging | Bulk |
| Other Names | 1122-1090 1122-1090-MIL 1617132-7 A101648 A101648-ND JMSWD5XM M39016/16-017M |
Operating Temperature | -65°C ~ 125°C |
| Operate Time | 4ms | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Features | Sealed - Hermetically |
| Detailed Description | General Purpose Relay DPDT (2 Form C) Through Hole | Contact Rating (Current) | 1A |
| Contact Material | - | Contact Form | DPDT (2 Form C) |
| Coil Voltage | 5VDC | Coil Type | Non Latching |
| Coil Resistance | 100 Ohms | Coil Power | 250 mW |
| Coil Current | 50.0mA |
