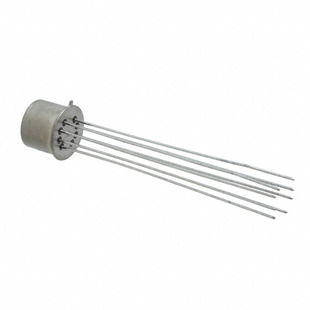

Agastat Relays / TE Connectivity
| Part Number | JMAC-26XP | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE DPDT 1A 28V | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 741 pcs | Data sheet | JMAC-26XP.pdf |
| Turn On Voltage (Max) | 14.2 VDC | Turn Off Voltage (Min) | 1.37 VDC |
| Termination Style | PC Pin | Switching Voltage | 28VDC - Nom |
| Series | Military, MIL-R-39016/9, MA, CII | Release Time | 1.5ms |
| Relay Type | General Purpose | Packaging | Bulk |
| Other Names | 1-1617121-1 1122-1058 1122-1058-MIL A101616 A101616-ND JMAC26XP M39016/9-062P |
Operating Temperature | -65°C ~ 125°C |
| Operate Time | 2ms | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Features | Sealed - Hermetically |
| Detailed Description | General Purpose Relay DPDT (2 Form C) Through Hole | Contact Rating (Current) | 1A |
| Contact Material | - | Contact Form | DPDT (2 Form C) |
| Coil Voltage | 26.5VDC | Coil Type | Non Latching |
| Coil Resistance | 1.56 kOhms | Coil Power | 450 mW |
| Coil Current | 17.0mA |
