HD36-24-19SE-072

Agastat Relays / TE Connectivity

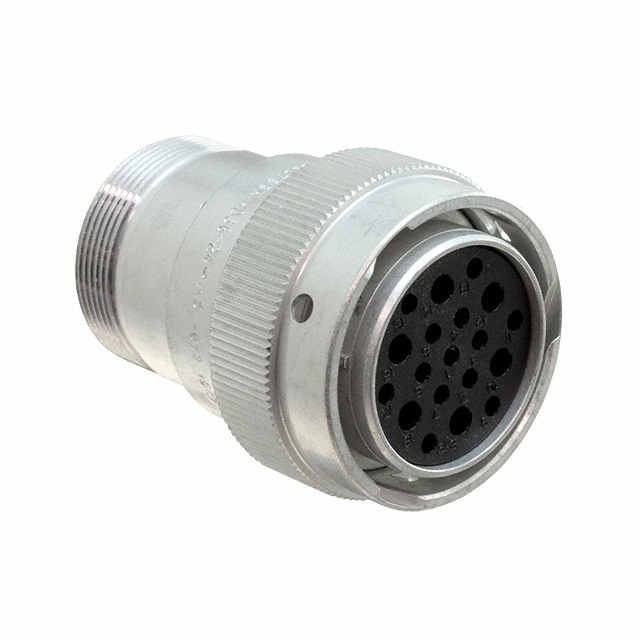

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HD36-24-19SE-072
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN PLUG HSG FMALE 19POS INLINE
Datasheets:	1.HD36-24-19SE-072.pdf 2.HD36-24-19SE-072.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3450 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3450 pcs

Reference Price (In US Dollars)

1 pcs: $8.995

10 pcs: $8.12

25 pcs: $7.78

50 pcs: $7.293

100 pcs: $7.05

250 pcs: $6.661

500 pcs: $6.467

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$8.995

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HD36-24-19SE-072

Part Number	HD36-24-19SE-072	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN PLUG HSG FMALE 19POS INLINE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3450 pcs	Data sheet	1.HD36-24-19SE-072.pdf 2.HD36-24-19SE-072.pdf
Type	For Female Sockets	Shielding	Unshielded
Shell Size, MIL	-	Shell Size - Insert	24-19
Shell Material	Aluminum	Shell Finish	-
Series	HD30	Packaging	Bulk
Other Names	1734-1811 HD36-24-19SE-072-ND	Orientation	Keyed
Operating Temperature	-55°C ~ 125°C	Number of Positions	19
Note	Contacts Not Included	Mounting Type	Free Hanging (In-Line)
Mounting Feature	-	Material Flammability Rating	-
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insert Material	Polyetherimide (PEI)	Ingress Protection	IP67 - Dust Tight, Waterproof
Includes	-	Housing Color	Silver
Features	Backshell	Fastening Type	Bayonet Lock
Detailed Description	19 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell	Coupling Nut Material, Plating	Aluminum
Coupling Nut Diameter	1.942" (49.32mm)	Contact Type	Crimp
Contact Size	12 (6), 16 (13)	Contact Shape	Circular
Connector Type	Plug Housing
