HD36-24-14SN

Agastat Relays / TE Connectivity

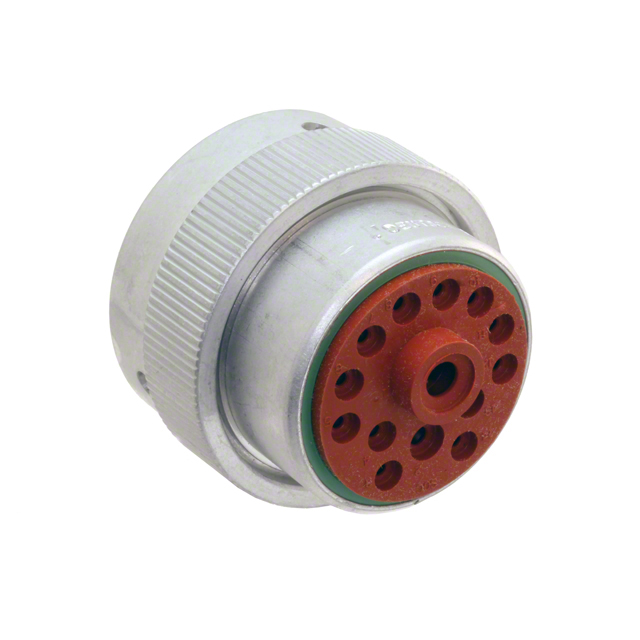

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HD36-24-14SN
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN PLG HSG FMALE 14POS INLINE
Datasheets:	1.HD36-24-14SN.pdf 2.HD36-24-14SN.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6485 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6485 pcs

Reference Price (In US Dollars)

1 pcs: $5.91

10 pcs: $5.488

25 pcs: $4.925

50 pcs: $4.784

100 pcs: $4.221

250 pcs: $3.94

500 pcs: $3.855

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$5.91

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HD36-24-14SN

Part Number	HD36-24-14SN	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN PLG HSG FMALE 14POS INLINE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6485 pcs	Data sheet	1.HD36-24-14SN.pdf 2.HD36-24-14SN.pdf
Type	For Female Sockets	Shielding	Unshielded
Shell Size, MIL	-	Shell Size - Insert	24-14
Shell Material	Aluminum	Shell Finish	-
Series	HD30	Packaging	Bulk
Other Names	1734-1253	Orientation	Keyed
Operating Temperature	-55°C ~ 125°C	Number of Positions	14
Note	Contacts Not Included	Mounting Type	Free Hanging (In-Line)
Mounting Feature	-	Moisture Sensitivity Level (MSL)	Not Applicable
Material Flammability Rating	-	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insert Material	Polyetherimide (PEI)
Ingress Protection	IP67 - Dust Tight, Waterproof	Includes	-
Housing Color	Silver	Features	Coupling Nut
Fastening Type	Bayonet Lock	Detailed Description	14 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
Coupling Nut Material, Plating	Aluminum	Coupling Nut Diameter	1.942" (49.32mm)
Contact Type	Crimp	Contact Size	4 (1), 12 (1), 16 (12)
Contact Shape	Circular	Connector Type	Plug Housing
