Agastat Relays / TE Connectivity
| Part Number | FSM | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5341 pcs | Data sheet | FSM.pdf |
| Termination Style | PC Pin | Switch Travel | 0.25mm |
| Switch Function | Off-Mom | Series | FSM |
| Packaging | Bulk | Outline | 6.00mm x 3.50mm |
| Other Names | 0-1437565-1 1437565-1 450-1173 FSM-ND |
Operating Temperature | -40°C ~ 85°C |
| Operating Force | 130gf | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 20,000 Cycles |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | - |

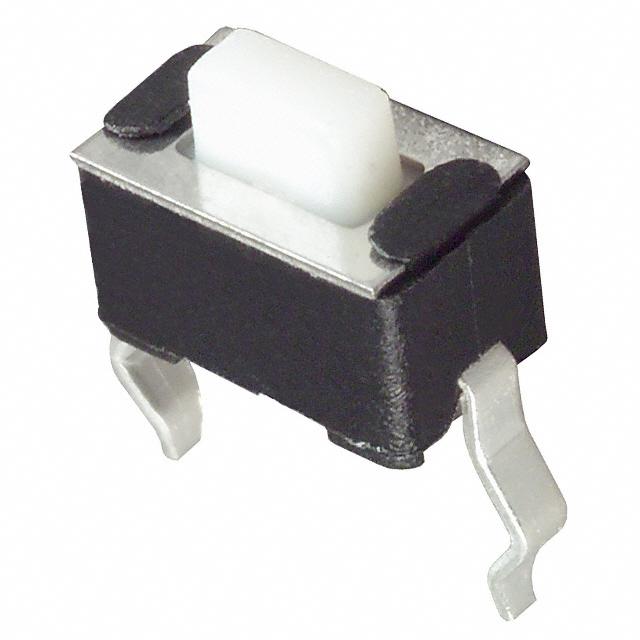

| Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole | Contact Rating @ Voltage | 0.05A @ 12VDC |
| Circuit | SPST-NO | Actuator Type | Rectangular Button |
| Actuator Orientation | Top Actuated | Actuator Material | Polybutylene Terephthalate (PBT) |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 5.00mm |
