EDS08SGRNTU04Q

Agastat Relays / TE ConnectivityAgastat Relays / TE Connectivity

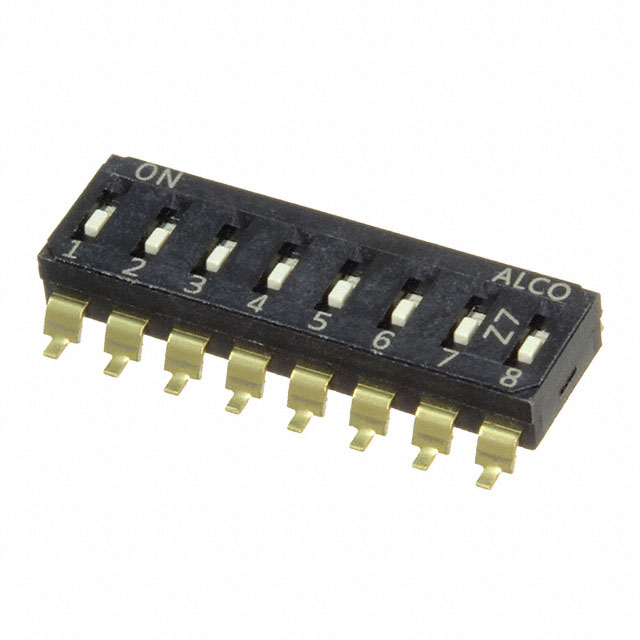

EDS08SGRNTU04Q Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: EDS08SGRNTU04Q
Manufacturer/Brand: Agastat Relays / TE Connectivity
Product description END STACK DIP 8P G RECESS TUBE
Datasheets: EDS08SGRNTU04Q.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 51120 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 51120 pcs
Reference Price (In US Dollars)
1 pcs
$0.712
23 pcs
$0.689
46 pcs
$0.654
69 pcs
$0.611
115 pcs
$0.597
253 pcs
$0.511
506 pcs
$0.497
1012 pcs
$0.426
5014 pcs
$0.391
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.712

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of EDS08SGRNTU04Q

Part Number EDS08SGRNTU04Q Manufacturer Agastat Relays / TE Connectivity
Description END STACK DIP 8P G RECESS TUBE Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 51120 pcs Data sheet EDS08SGRNTU04Q.pdf
Washable No Voltage Rating 24VDC
Termination Style Gull Wing Series EDS
Pitch 0.100" (2.54mm), Full Packaging Tube
Other Names 2319848-8
450-2620		 Operating Temperature -20°C ~ 85°C
Number of Positions 8 Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Mechanical Life 2,000 Cycles
Manufacturer Standard Lead Time 9 Weeks Length 0.796" (20.22mm)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Height Above Board 0.134" (3.40mm)
Features - Electrical Life 2,000 Cycles
Detailed Description Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC Current Rating 25mA
Contact Material Copper Alloy Contact Finish Gold
Circuit SPST Body Material Polyamide (PA), Nylon
Actuator Type Slide (Standard) Actuator Level Flush, Recessed
