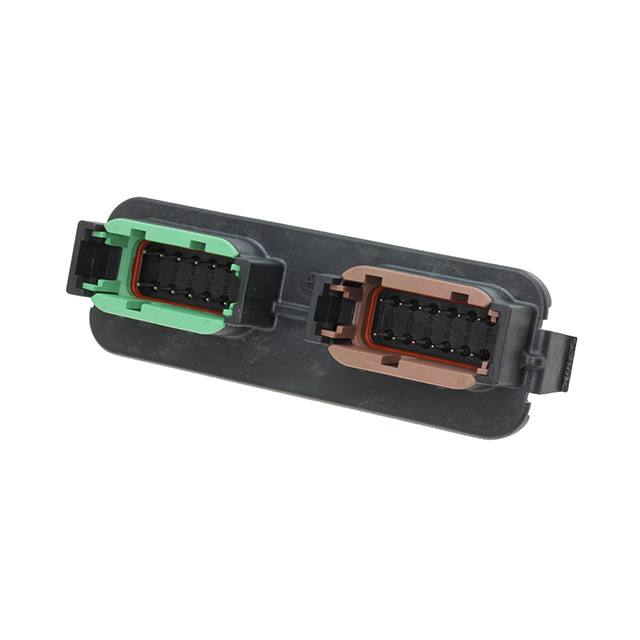

Agastat Relays / TE Connectivity
| Part Number | DTM1312PC12PDR008 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 24POS T/H R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4041 pcs | Data sheet | 1.DTM1312PC12PDR008.pdf2.DTM1312PC12PDR008.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | DTM | Row Spacing - Mating | - |
| Pitch - Mating | - | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 1734-1662 DTM1312PC12PDR008-ND |
| Operating Temperature | - | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 24 (12 + 12) |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Plastic |
| Insulation Height | 1.378" (35.00mm) | Insulation Color | Green |
| Ingress Protection | IP68/IP6K9K | Features | Mounting Flange |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Panel Mount, Through Hole, Right Angle 24 (12 + 12) position |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | - |
| Contact Length - Post | 0.112" (2.84mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Nickel |
| Connector Type | Header | Applications | Automotive |
