ASF22

Agastat Relays / TE Connectivity

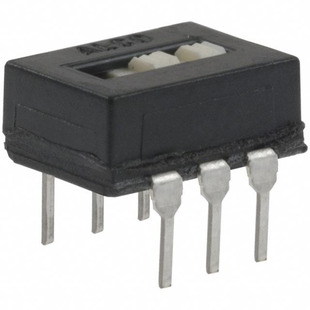

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ASF22
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	SWITCH SLIDE DPDT 300MA 115V
Datasheets:	ASF22.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	9151 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 9151 pcs

Reference Price (In US Dollars)

1 pcs: $3.36

10 pcs: $3.321

25 pcs: $3.281

50 pcs: $3.001

100 pcs: $2.881

250 pcs: $2.72

500 pcs: $2.40

1000 pcs: $2.16

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.36

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ASF22

Part Number	ASF22	Manufacturer	Agastat Relays / TE Connectivity
Description	SWITCH SLIDE DPDT 300MA 115V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9151 pcs	Data sheet	ASF22.pdf
Voltage Rating - AC	115V	Termination Style	PC Pin
Switch Travel	2.79mm	Switch Function	On-On
Series	ASF	Packaging	Tube
Other Names	450-1800 5-1437581-6 5-1437581-6-ND 514375816 ASF22-ND	Operating Temperature	-40°C ~ 80°C
Operating Force	950gf	Mounting Type	Through Hole
Mechanical Life	15,000 Cycles	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Tape Seal
Electrical Life	15,000 Cycles	Detailed Description	Slide Switch DPDT Through Hole
Current Rating	300mA (AC)	Contact Timing	Shorting (MBB)
Contact Material	Copper Alloy	Contact Finish	Silver
Circuit	DPDT	Actuator Type	Screwdriver Slot
Actuator Material	Polyamide (PA46), Nylon 4/6	Actuator Length	Flush
