917727-1

Agastat Relays / TE Connectivity

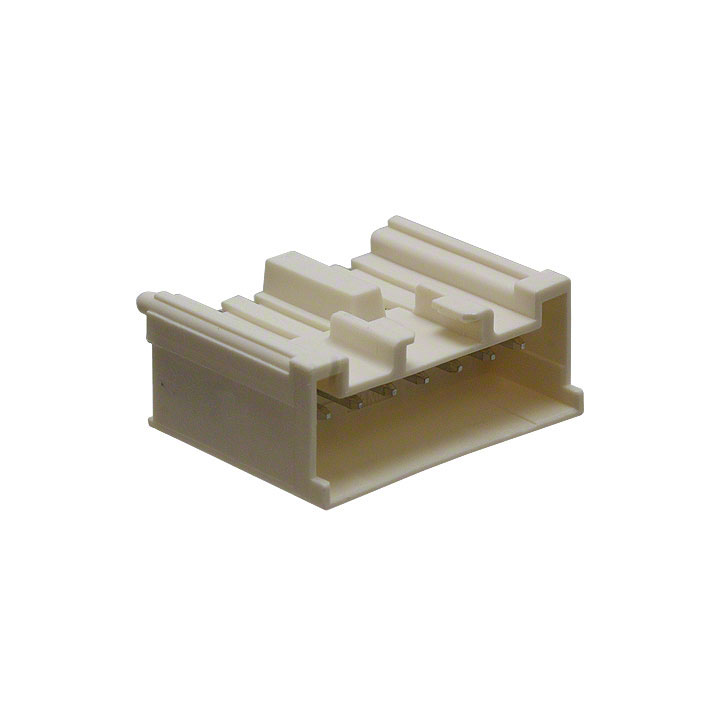

Image may be representation. See specifications for product details.

Product Overview

Part Number:	917727-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 7POS VERT TIN 2.5MM
Datasheets:	917727-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	106259 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 106259 pcs

Reference Price (In US Dollars)

1 pcs: $0.365

10 pcs: $0.322

100 pcs: $0.277

500 pcs: $0.227

1000 pcs: $0.202

5000 pcs: $0.177

10000 pcs: $0.168

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.365

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 917727-1

Part Number	917727-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 7POS VERT TIN 2.5MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	106259 pcs	Data sheet	917727-1.pdf
Voltage Rating	50V	Termination	Kinked Pin, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Signal Double Lock	Row Spacing - Mating	-
Pitch - Mating	0.098" (2.50mm)	Packaging	Bulk
Overall Contact Length	0.626" (15.90mm)	Other Names	917727-1-ND 9177271 A106946
Operating Temperature	-30°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	7
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	19.2mm
Manufacturer Standard Lead Time	23 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Insulation Height	0.602" (15.29mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Guide	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole 7 position 0.098" (2.50mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	0.185" (4.70mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose
