9-966140-1

Agastat Relays / TE Connectivity

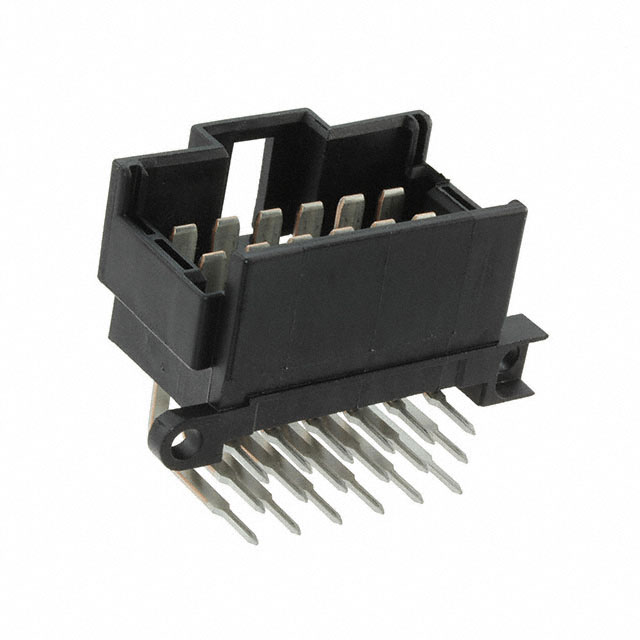

Image may be representation. See specifications for product details.

Product Overview

Part Number:	9-966140-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER TAB 18POS R/A TIN
Datasheets:	9-966140-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15553 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 15553 pcs

Reference Price (In US Dollars)

1 pcs: $2.485

10 pcs: $2.381

140 pcs: $1.967

560 pcs: $1.656

1120 pcs: $1.449

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.485

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 9-966140-1

Part Number	9-966140-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER TAB 18POS R/A TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15553 pcs	Data sheet	9-966140-1.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Junior Power Timer	Row Spacing - Mating	0.217" (5.51mm)
Pitch - Mating	0.197" (5.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	9-966140-1-ND A121600
Operating Temperature	-40°C ~ 100°C	Number of Rows	3
Number of Positions Loaded	All	Number of Positions	18
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	17 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Insulation Height	1.012" (25.70mm)
Insulation Color	Black	Ingress Protection	-
Features	Mounting Flange	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole, Right Angle 18 position 0.197" (5.00mm)	Current Rating	-
Contact Type	Tab	Contact Shape	Rectangular
Contact Material	Copper Alloy	Contact Length - Post	0.118" (3.00mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	-
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose
