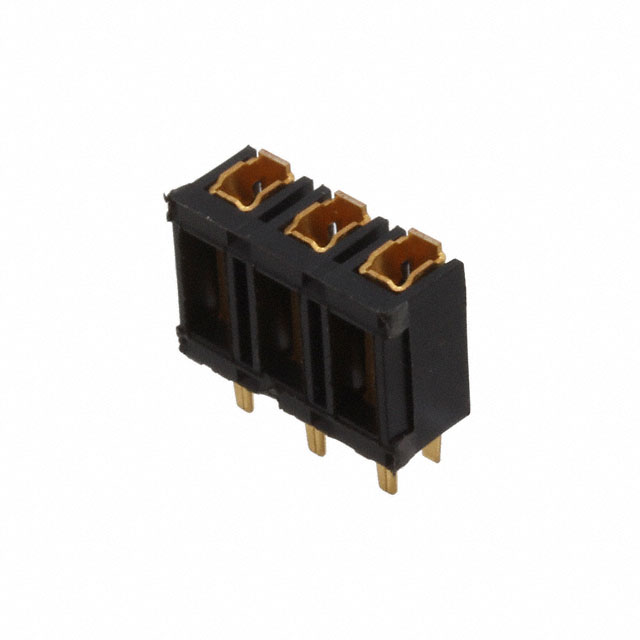

Agastat Relays / TE Connectivity
| Part Number | 87989-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 03 MODI BDMNT RCPT SR .156CL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 46868 pcs | Data sheet | 87989-3.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Series | AMPMODU Mod I |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Tube | Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.300" (7.62mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 3 Position Receptacle, Bottom Entry Connector 0.156" (3.96mm) Through Hole Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.112" (2.84mm) | Contact Finish Thickness - Post | 50.0µin (1.27µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Aluminum |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Bottom Entry |
| Applications | - |
