Agastat Relays / TE Connectivity

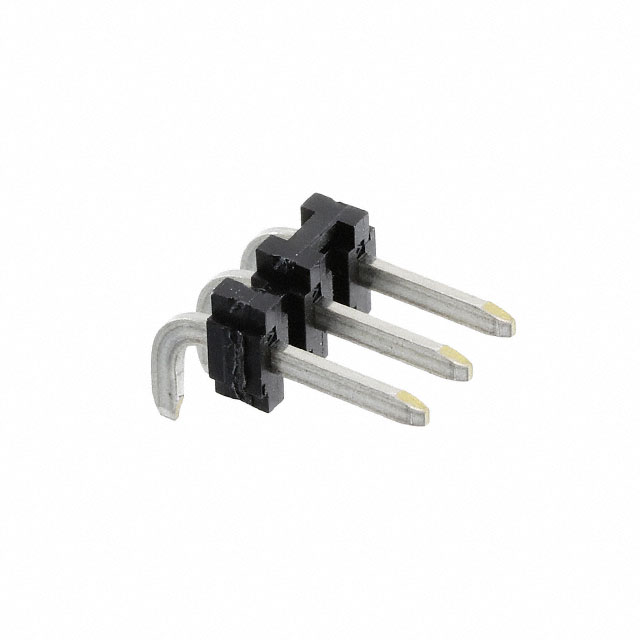

| Part Number | 87655-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 3POS R/A TIN | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 35564 pcs | Data sheet | 87655-3.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Unshrouded |
| Series | AMPMODU Mod I | Row Spacing - Mating | - |
| Pitch - Mating | 0.156" (3.96mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 87655-3-ND A114576 |
| Operating Temperature | -65°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 3 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.250" (6.35mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 3 position 0.156" (3.96mm) |
| Current Rating | 5A | Contact Type | Male Pin |
| Contact Shape | Rectangular | Contact Material | Brass |
| Contact Length - Post | 0.150" (3.81mm) | Contact Length - Mating | 0.345" (8.76mm) |
| Contact Finish Thickness - Post | 50.0µin (1.27µm) | Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Tin-Lead |
| Connector Type | Header | Applications | - |
