87160-1

Agastat Relays / TE Connectivity

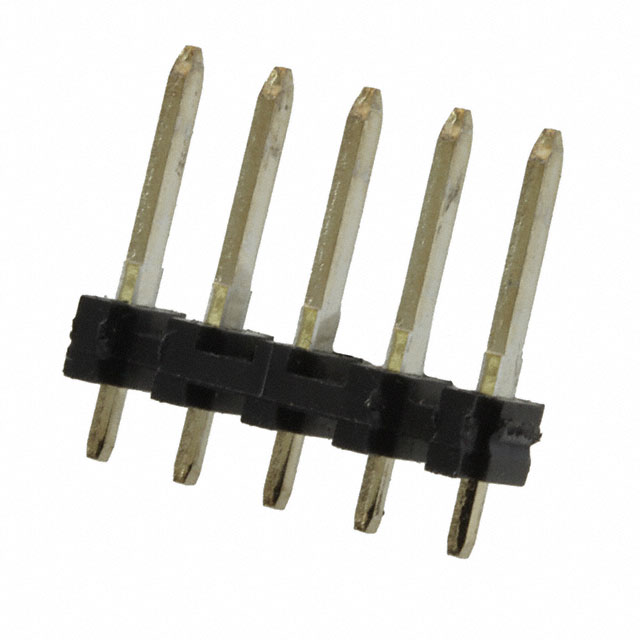

Image may be representation. See specifications for product details.

Product Overview

Part Number:	87160-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HDR VERT 5 POS TIN .156 PCB
Datasheets:	87160-1.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	45841 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 45841 pcs

Reference Price (In US Dollars)

1 pcs: $0.856

10 pcs: $0.776

100 pcs: $0.665

500 pcs: $0.554

1000 pcs: $0.475

5000 pcs: $0.421

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.856

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 87160-1

Part Number	87160-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HDR VERT 5 POS TIN .156 PCB	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	45841 pcs	Data sheet	87160-1.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	AMPMODU Mod I	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	0.655" (16.64mm)	Other Names	87160-1-ND A114567
Operating Temperature	-65°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	5
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Insulation Material	Thermoplastic	Insulation Height	0.125" (3.18mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 5 position 0.156" (3.96mm)	Current Rating	5A
Contact Type	Male Pin	Contact Shape	Rectangular
Contact Material	Brass	Contact Length - Post	0.125" (3.18mm)
Contact Length - Mating	0.405" (10.29mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	100.0µin (2.54µm)	Contact Finish - Post	Tin-Lead
Contact Finish - Mating	Tin-Lead	Connector Type	Header
Applications	-
