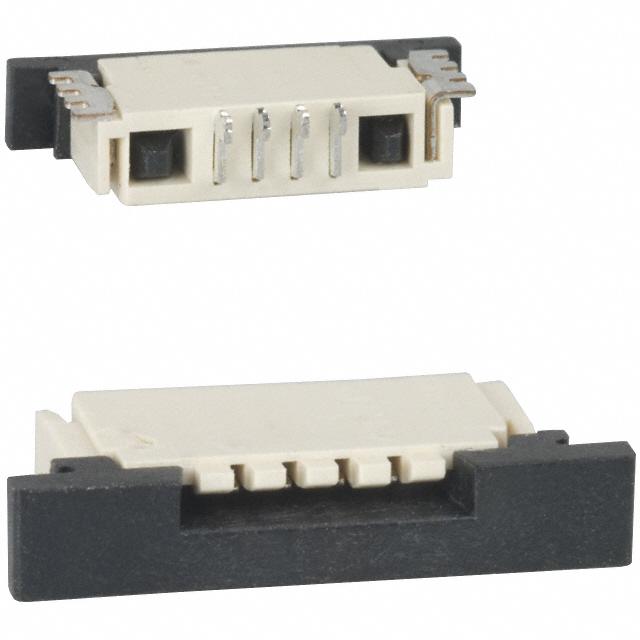

Agastat Relays / TE Connectivity
| Part Number | 84953-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN FPC TOP 4POS 1.00MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 106010 pcs | Data sheet | 84953-4.pdf |
| Voltage Rating | 200V | Termination | Solder |
| Series | - | Pitch | 0.039" (1.00mm) |
| Packaging | Original-Reel® | Other Names | A33834DKR |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 4 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | - | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 15 Weeks | Locking Feature | Slide Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Housing Color | Natural | Height Above Board | 0.101" (2.56mm) |
| Flat Flex Type | FPC | Features | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 4 Position FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle |
| Current Rating | 1A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 78.7µin (2.00µm) | Contact Finish | Tin |
| Connector/Contact Type | Contacts, Top | Cable End Type | Straight |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled | Actuator Color | Black |
