Agastat Relays / TE Connectivity
| Part Number | 826938-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADR BRKWY 2POS VERT TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 693604 pcs | Data sheet | 826938-2.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Unshrouded |
| Series | AMPMODU Mod II | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | 0.551" (14.00mm) | Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 39 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.110" (2.79mm) | Insulation Color | Green |
| Ingress Protection | - | Features | - |

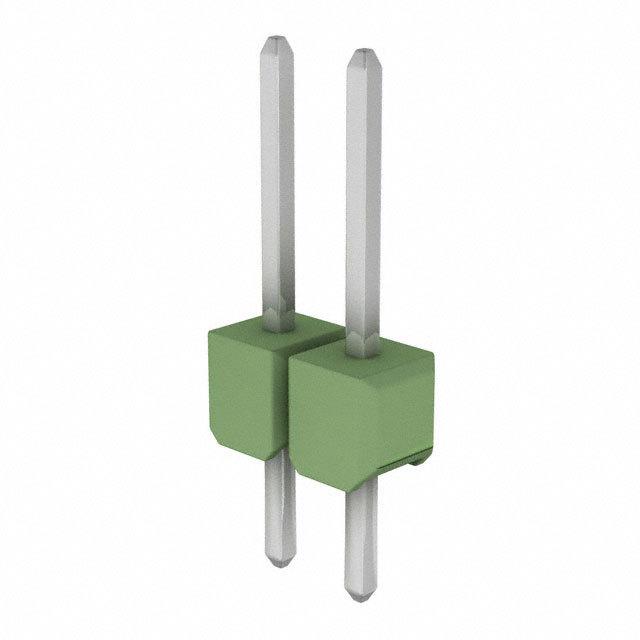

| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 2 position 0.100" (2.54mm) |
| Current Rating | 5A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | 0.315" (8.00mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header, Breakaway | Applications | - |
