826632-1

Agastat Relays / TE Connectivity

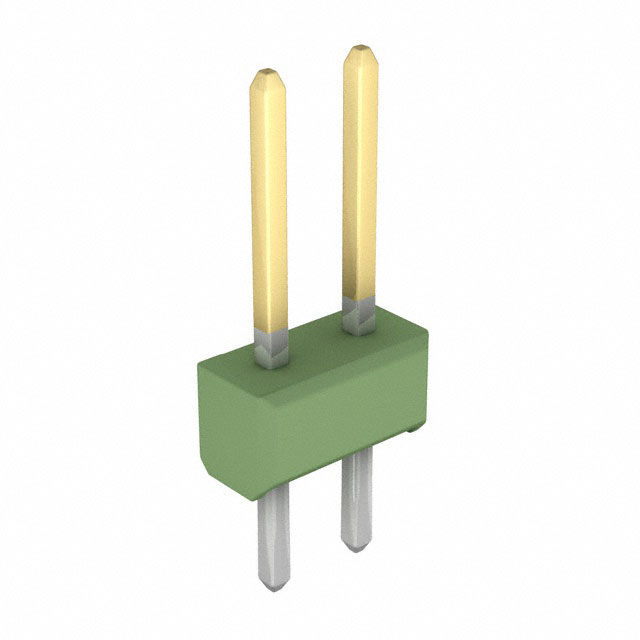

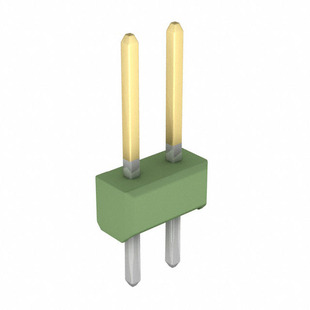

Image may be representation. See specifications for product details.

Product Overview

Part Number:	826632-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER BRKWY 2POS VERT GOLD
Datasheets:	826632-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	237241 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 237241 pcs

Reference Price (In US Dollars)

1 pcs: $0.166

10 pcs: $0.155

100 pcs: $0.119

500 pcs: $0.103

1000 pcs: $0.085

5000 pcs: $0.075

10000 pcs: $0.07

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.166

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 826632-1

Part Number	826632-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER BRKWY 2POS VERT GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	237241 pcs	Data sheet	826632-1.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	AMPMODU Mod II	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	-	Packaging	Bulk
Overall Contact Length	0.500" (12.70mm)	Other Names	826632-1-ND A129090
Operating Temperature	-65°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	39 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT)	Insulation Height	0.110" (2.79mm)
Insulation Color	Green	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 2 position	Current Rating	5A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	0.264" (6.70mm)	Contact Finish Thickness - Post	118.1µin (3.00µm)
Contact Finish Thickness - Mating	3.90µin (0.099µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header, Breakaway
Applications	-
