826470-3

Agastat Relays / TE Connectivity

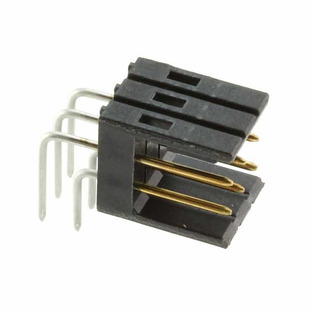

Image may be representation. See specifications for product details.

Product Overview

Part Number:	826470-3
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 6POS DL R/A GOLD
Datasheets:	826470-3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	55627 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 55627 pcs

Reference Price (In US Dollars)

1 pcs: $0.654

10 pcs: $0.594

100 pcs: $0.509

500 pcs: $0.424

1000 pcs: $0.363

5000 pcs: $0.322

10000 pcs: $0.315

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.654

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 826470-3

Part Number	826470-3	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 6POS DL R/A GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	55627 pcs	Data sheet	826470-3.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 2 Wall
Series	AMPMODU Mod II	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	826470-3-ND A121809
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	6
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	20 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Insulation Height	0.339" (8.61mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	118.1µin (3.00µm)
Contact Finish Thickness - Mating	3.90µin (0.099µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
