8-5353015-1

Agastat Relays / TE Connectivity

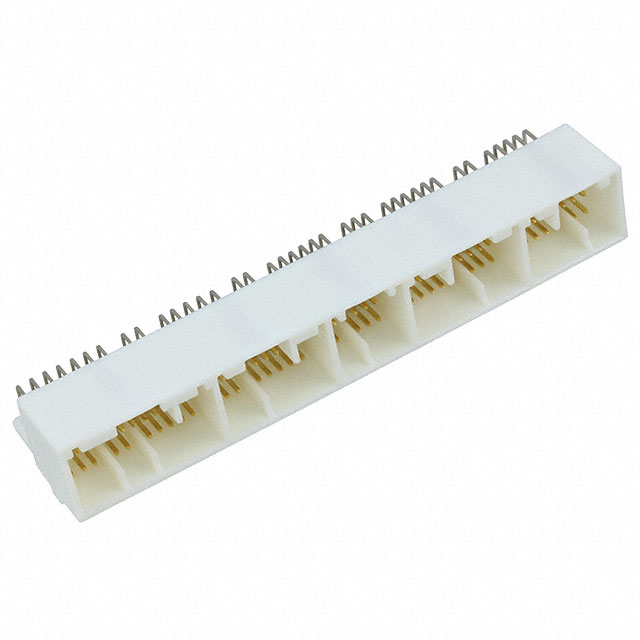

Image may be representation. See specifications for product details.

Product Overview

Part Number:	8-5353015-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 122POS R/A GOLD T/H
Datasheets:	8-5353015-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5239 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5239 pcs

Reference Price (In US Dollars)

1 pcs: $7.517

12 pcs: $6.981

100 pcs: $5.37

500 pcs: $4.904

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$7.517

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 8-5353015-1

Part Number	8-5353015-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 122POS R/A GOLD T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5239 pcs	Data sheet	8-5353015-1.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Multi-Lock	Row Spacing - Mating	-
Pitch - Mating	-	Packaging	Tube
Overall Contact Length	-	Other Names	8-5353015-1-ND A123262
Operating Temperature	-30°C ~ 105°C	Number of Rows	3
Number of Positions Loaded	All	Number of Positions	122
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT)	Insulation Height	0.886" (22.50mm)
Insulation Color	-	Ingress Protection	-
Features	Mounting Flange	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole, Right Angle 122 position	Current Rating	Varies by Wire Gauge
Contact Type	Tab	Contact Shape	Rectangular
Contact Material	Copper Alloy	Contact Length - Post	0.157" (4.00mm)
Contact Length - Mating	0.280" (7.11mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	-
Applications	Automotive, General Purpose
