8-338728-6

Agastat Relays / TE Connectivity

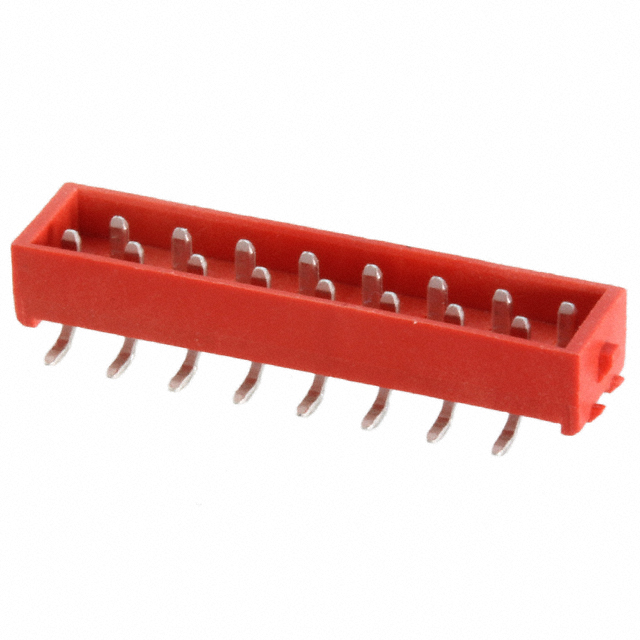

Image may be representation. See specifications for product details.

Product Overview

Part Number:	8-338728-6
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 16POS DL VERT SMD
Datasheets:	8-338728-6.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	70274 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 70274 pcs

Reference Price (In US Dollars)

7500 pcs: $0.544

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.544

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 8-338728-6

Part Number	8-338728-6	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 16POS DL VERT SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	70274 pcs	Data sheet	8-338728-6.pdf
Voltage Rating	230V	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Micro-MaTch	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Tape & Reel (TR)
Overall Contact Length	-	Other Names	8-338728-6-ND A116321TR
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	16
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled	Insulation Height	0.181" (4.60mm)
Insulation Color	Red	Ingress Protection	-
Features	Pick and Place	Fastening Type	Latch Lock
Detailed Description	Connector Header Surface Mount 16 position 0.100" (2.54mm)	Current Rating	1.5A
Contact Type	Male Pin	Contact Shape	Rectangular
Contact Material	Brass	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	118.1µin (3.00µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose
