8-176314-6

Agastat Relays / TE Connectivity

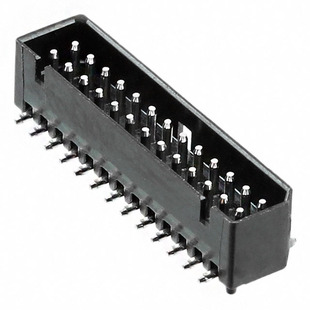

Image may be representation. See specifications for product details.

Product Overview

Part Number:	8-176314-6
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 26POS DUAL VERT TIN
Datasheets:	1.8-176314-6.pdf 2.8-176314-6.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	172642 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 172642 pcs

Reference Price (In US Dollars)

11250 pcs: $0.199

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.199

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 8-176314-6

Part Number	8-176314-6	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 26POS DUAL VERT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	172642 pcs	Data sheet	1.8-176314-6.pdf 2.8-176314-6.pdf
Voltage Rating	50V	Termination	Solder
Style	Board to Board	Shrouding	Shrouded - 4 Wall
Series	Fine Pitch	Row Spacing - Mating	0.049" (1.25mm)
Pitch - Mating	0.049" (1.25mm)	Packaging	Tube
Overall Contact Length	-	Other Names	8-176314-6-ND A115689
Operating Temperature	-30°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	26
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyphenylene Sulfide (PPS)	Insulation Height	0.156" (3.96mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Push-Pull
Detailed Description	Connector Header Surface Mount 26 position 0.049" (1.25mm)	Current Rating	0.5A
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Brass	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	31.5µin (0.80µm)
Contact Finish Thickness - Mating	31.5µin (0.80µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
