794680-6

Agastat Relays / TE Connectivity

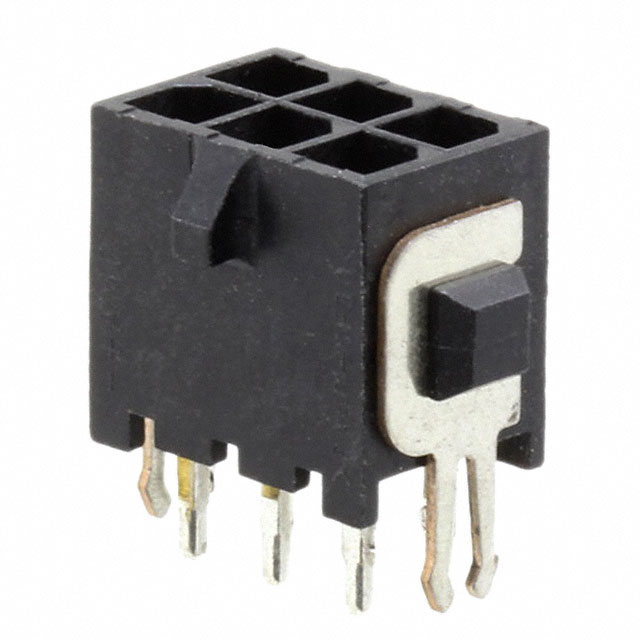

Image may be representation. See specifications for product details.

Product Overview

Part Number:	794680-6
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 6POS DUAL VERT TIN
Datasheets:	1.794680-6.pdf 2.794680-6.pdf 3.794680-6.pdf 4.794680-6.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	3641 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3641 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 794680-6

Part Number	794680-6	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 6POS DUAL VERT TIN	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	3641 pcs	Data sheet	1.794680-6.pdf 2.794680-6.pdf 3.794680-6.pdf 4.794680-6.pdf
Voltage Rating	250V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Micro MATE-N-LOK	Row Spacing - Mating	0.118" (3.00mm)
Pitch - Mating	0.118" (3.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	794680-6-ND A114481
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	6
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Insulation Material	Polyamide (PA), Nylon
Insulation Height	0.364" (9.25mm)	Insulation Color	Black
Ingress Protection	-	Features	Board Lock
Fastening Type	Locking Ramp	Detailed Description	Connector Header Through Hole 6 position 0.118" (3.00mm)
Current Rating	Varies by Wire Gauge	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.125" (3.18mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin-Lead	Contact Finish - Mating	Tin-Lead
Connector Type	Header	Applications	General Purpose
