794236-1

Agastat Relays / TE Connectivity

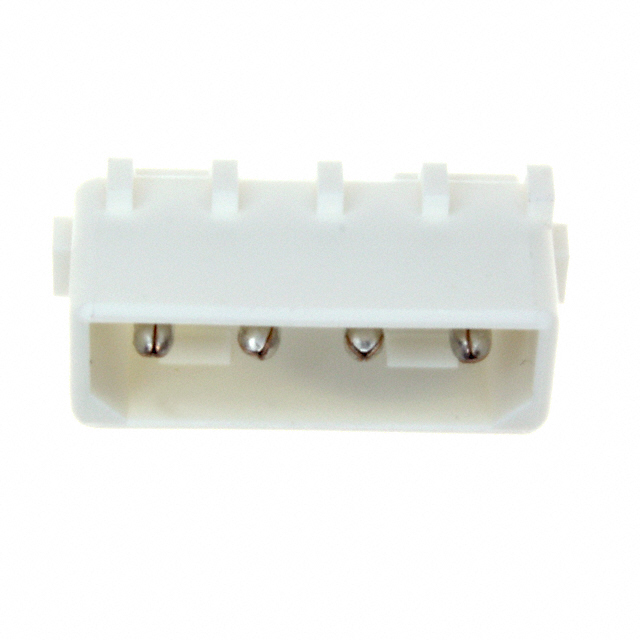

Image may be representation. See specifications for product details.

Product Overview

Part Number:	794236-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER PIN VERT 4POS TIN
Datasheets:	794236-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	72519 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 72519 pcs

Reference Price (In US Dollars)

1 pcs: $0.466

10 pcs: $0.409

100 pcs: $0.353

500 pcs: $0.289

1000 pcs: $0.257

5000 pcs: $0.225

10000 pcs: $0.213

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.466

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 794236-1

Part Number	794236-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER PIN VERT 4POS TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	72519 pcs	Data sheet	794236-1.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Commercial MATE-N-LOK	Row Spacing - Mating	-
Pitch - Mating	0.200" (5.08mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	794236-1-ND 7942361 A25422
Operating Temperature	-55°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.375" (9.53mm)
Insulation Color	White	Ingress Protection	-
Features	-	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole 4 position 0.200" (5.08mm)	Current Rating	15A
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Phosphor Bronze	Contact Length - Post	0.150" (3.81mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose
