794107-1

Agastat Relays / TE Connectivity

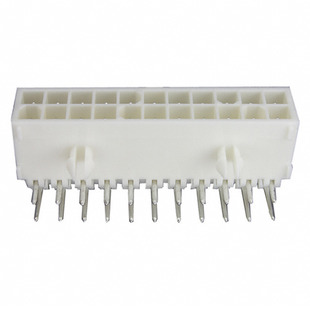

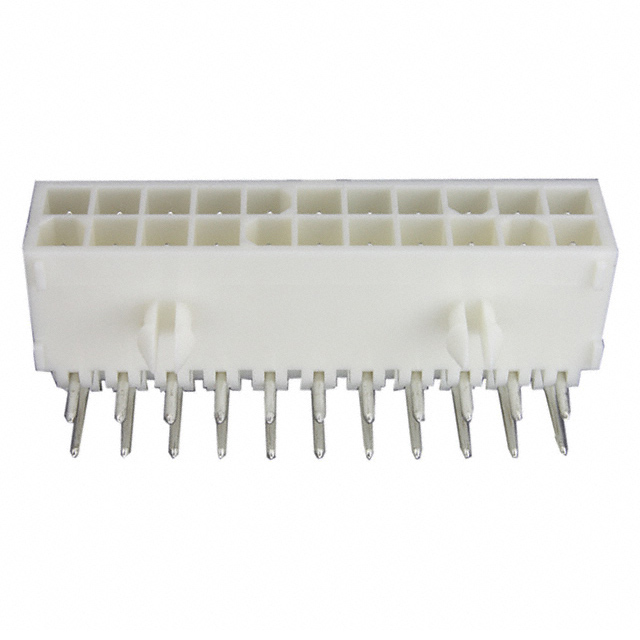

Image may be representation. See specifications for product details.

Product Overview

Part Number:	794107-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HDR 22POS R/A DUAL .163 TIN
Datasheets:	794107-1.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	19204 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 19204 pcs

Reference Price (In US Dollars)

400 pcs: $1.895

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.895

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 794107-1

Part Number	794107-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HDR 22POS R/A DUAL .163 TIN	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	19204 pcs	Data sheet	794107-1.pdf
Voltage Rating	600VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini-Universal MATE-N-LOK	Row Spacing - Mating	0.163" (4.14mm)
Pitch - Mating	0.163" (4.14mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	A25696
Operating Temperature	-20°C ~ 85°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	22
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.386" (9.80mm)
Insulation Color	White	Ingress Protection	-
Features	Board Lock	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole, Right Angle 22 position 0.163" (4.14mm)	Current Rating	Varies by Wire Gauge
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Brass	Contact Length - Post	0.145" (3.68mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	150.0µin (3.81µm)
Contact Finish Thickness - Mating	150.0µin (3.81µm)	Contact Finish - Post	Tin-Lead
Contact Finish - Mating	Tin-Lead	Connector Type	Header
Applications	General Purpose
