776087-1

Agastat Relays / TE Connectivity

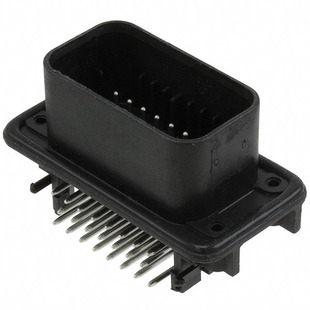

Image may be representation. See specifications for product details.

Product Overview

Part Number:	776087-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HDR RTANG 23POS W/GASKT TIN
Datasheets:	776087-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10633 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 10633 pcs

Reference Price (In US Dollars)

1 pcs: $2.959

10 pcs: $2.829

100 pcs: $2.379

500 pcs: $1.993

1000 pcs: $1.762

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.959

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 776087-1

Part Number	776087-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HDR RTANG 23POS W/GASKT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10633 pcs	Data sheet	776087-1.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	AMPSEAL	Row Spacing - Mating	0.157" (4.00mm)
Pitch - Mating	0.157" (4.00mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	776087-1-ND 7760871 A107007
Operating Temperature	-40°C ~ 105°C	Number of Rows	3
Number of Positions Loaded	All	Number of Positions	23
Mounting Type	Panel Mount, Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Insulation Height	-	Insulation Color	Black
Ingress Protection	-	Features	Board Guide, Sealed
Fastening Type	Locking Ramp	Detailed Description	Connector Header Panel Mount, Through Hole, Right Angle 23 position 0.157" (4.00mm)
Current Rating	Varies by Wire Gauge	Contact Type	Male Pin
Contact Shape	Circular	Contact Material	Brass
Contact Length - Post	-	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	-
Contact Finish - Post	-	Contact Finish - Mating	Tin
Connector Type	Header	Applications	Automotive, Industrial
