770669-1

Agastat Relays / TE Connectivity

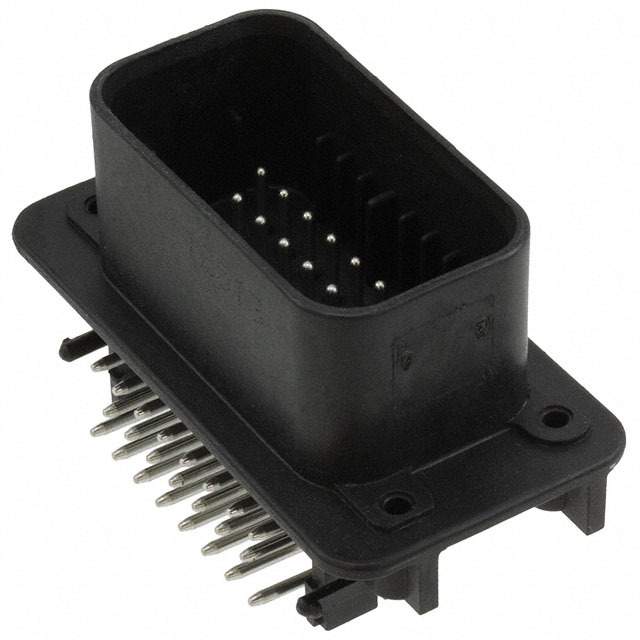

Image may be representation. See specifications for product details.

Product Overview

Part Number:	770669-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 23POS R/A TIN BLK
Datasheets:	770669-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12179 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 12179 pcs

Reference Price (In US Dollars)

1 pcs: $2.738

10 pcs: $2.625

25 pcs: $2.397

50 pcs: $2.283

100 pcs: $2.169

250 pcs: $1.941

500 pcs: $1.826

1000 pcs: $1.598

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.738

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 770669-1

Part Number	770669-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 23POS R/A TIN BLK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12179 pcs	Data sheet	770669-1.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	AMPSEAL	Row Spacing - Mating	0.157" (4.00mm)
Pitch - Mating	0.157" (4.00mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	770669-1-ND 7706691 A105204
Operating Temperature	-40°C ~ 105°C	Number of Rows	3
Number of Positions Loaded	All	Number of Positions	23
Mounting Type	Panel Mount, Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	23 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Insulation Height	-
Insulation Color	Black	Ingress Protection	-
Features	Board Guide, Sealable	Fastening Type	Locking Ramp
Detailed Description	Connector Header Panel Mount, Through Hole, Right Angle 23 position 0.157" (4.00mm)	Current Rating	Varies by Wire Gauge
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Brass	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	-
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, Industrial
