Agastat Relays / TE Connectivity

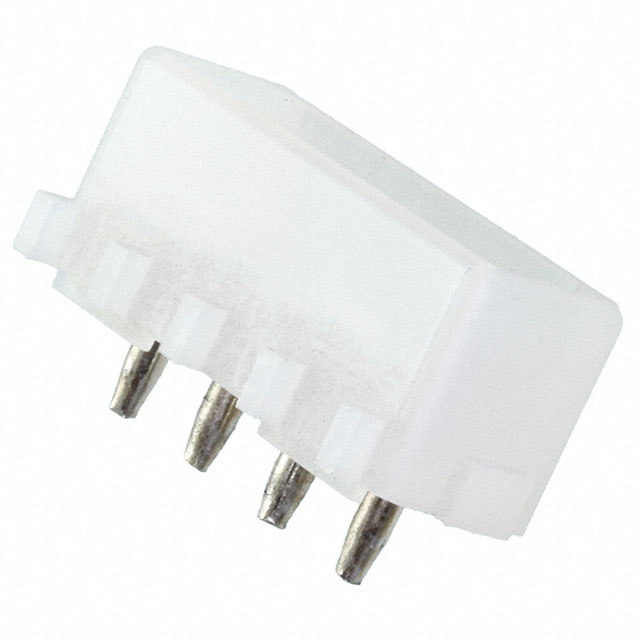

| Part Number | 770328-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER PIN VERT 4POS TIN | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5659 pcs | Data sheet | 770328-1.pdf |
| Voltage Rating | 250VAC | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | Commercial MATE-N-LOK | Row Spacing - Mating | - |
| Pitch - Mating | 0.200" (5.08mm) | Packaging | Tube |
| Overall Contact Length | - | Other Names | 770328-1-ND A25420 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-2 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.375" (9.53mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole 4 position 0.200" (5.08mm) |
| Current Rating | 12A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 80.0µin (2.03µm) | Contact Finish Thickness - Mating | 80.0µin (2.03µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Tin-Lead |
| Connector Type | Header | Applications | - |
