7-174820-7

Agastat Relays / TE Connectivity

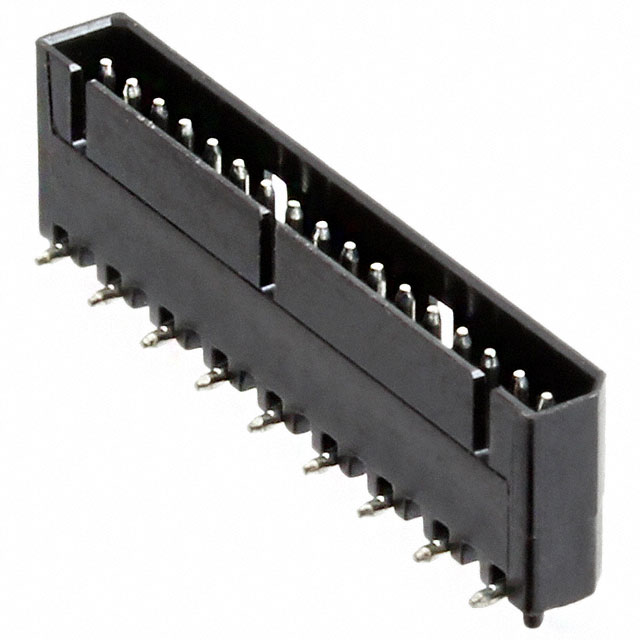

Image may be representation. See specifications for product details.

Product Overview

Part Number:	7-174820-7
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER .049" 17POS SMT TIN
Datasheets:	1.7-174820-7.pdf 2.7-174820-7.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	133028 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 133028 pcs

Reference Price (In US Dollars)

10000 pcs: $0.248

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.248

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 7-174820-7

Part Number	7-174820-7	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER .049" 17POS SMT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	133028 pcs	Data sheet	1.7-174820-7.pdf 2.7-174820-7.pdf
Voltage Rating	50V	Termination	Solder
Style	Board to Board	Shrouding	Shrouded - 4 Wall
Series	Fine Pitch	Row Spacing - Mating	-
Pitch - Mating	0.049" (1.25mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	7-174820-7-ND A114368
Operating Temperature	-30°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	17
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	7mm, 7.8mm
Manufacturer Standard Lead Time	18 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyphenylene Sulfide (PPS)	Insulation Height	0.234" (5.95mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Push-Pull
Detailed Description	Connector Header Surface Mount 17 position 0.049" (1.25mm)	Current Rating	0.5A
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Brass	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
