7-1565036-4

Agastat Relays / TE Connectivity

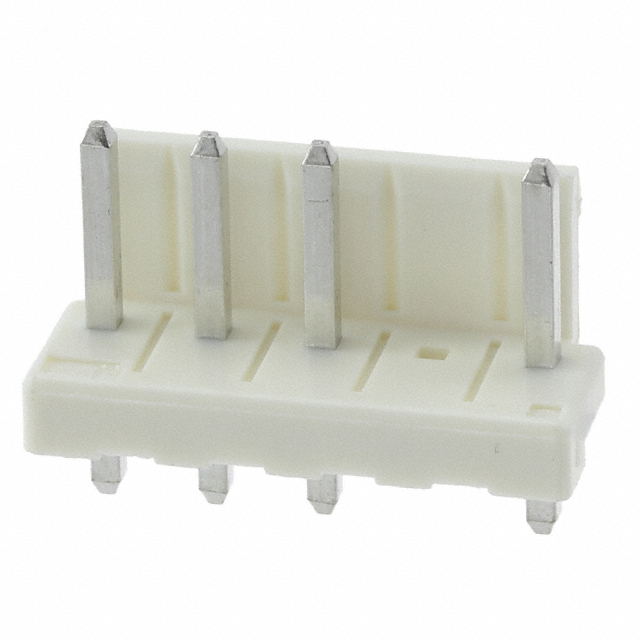

Image may be representation. See specifications for product details.

Product Overview

Part Number:	7-1565036-4
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	EP CONN.HDR ASSY 4/5POS-W/O NO.4
Datasheets:	7-1565036-4.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	398231 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 398231 pcs

Reference Price (In US Dollars)

1 pcs: $0.094

10 pcs: $0.088

100 pcs: $0.061

500 pcs: $0.051

1000 pcs: $0.042

5000 pcs: $0.037

10000 pcs: $0.034

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.094

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 7-1565036-4

Part Number	7-1565036-4	Manufacturer	Agastat Relays / TE Connectivity
Description	EP CONN.HDR ASSY 4/5POS-W/O NO.4	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	398231 pcs	Data sheet	7-1565036-4.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 1 Wall
Series	Economy Power	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	0.567" (14.40mm)	Other Names	A116736
Operating Temperature	-25°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	4	Number of Positions	5
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Insulation Height	0.362" (9.20mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole 5 position 0.156" (3.96mm)	Current Rating	7.5A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.146" (3.70mm)
Contact Length - Mating	0.303" (7.70mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial, Lighting
