647050-8

Agastat Relays / TE Connectivity

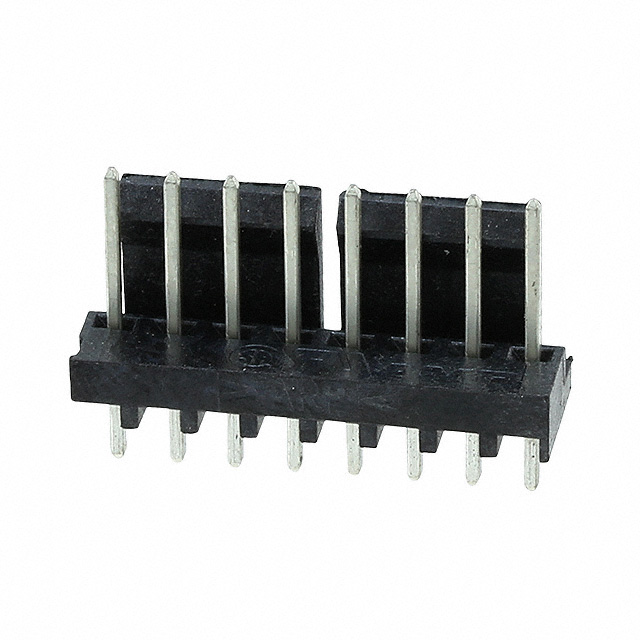

Image may be representation. See specifications for product details.

Product Overview

Part Number:	647050-8
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 8POS VERT .100 TIN
Datasheets:	1.647050-8.pdf 2.647050-8.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	7099 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 7099 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 647050-8

Part Number	647050-8	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 8POS VERT .100 TIN	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	7099 pcs	Data sheet	1.647050-8.pdf 2.647050-8.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 1 Wall
Series	MTA-100	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.550" (13.97mm)	Other Names	647050-8-ND A114270
Operating Temperature	-55°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	8
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Insulation Material	Polyamide (PA4T), Nylon 4T
Insulation Height	0.347" (8.81mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Friction Lock	Detailed Description	Connector Header Through Hole 8 position 0.100" (2.54mm)
Current Rating	Varies by Wire Gauge	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Copper Alloy
Contact Length - Post	0.135" (3.43mm)	Contact Length - Mating	0.290" (7.37mm)
Contact Finish Thickness - Post	150.0µin (3.81µm)	Contact Finish Thickness - Mating	80.0µin (2.03µm)
Contact Finish - Post	Tin-Lead	Contact Finish - Mating	Tin-Lead
Connector Type	Header	Applications	General Purpose
