644611-5

Agastat Relays / TE Connectivity

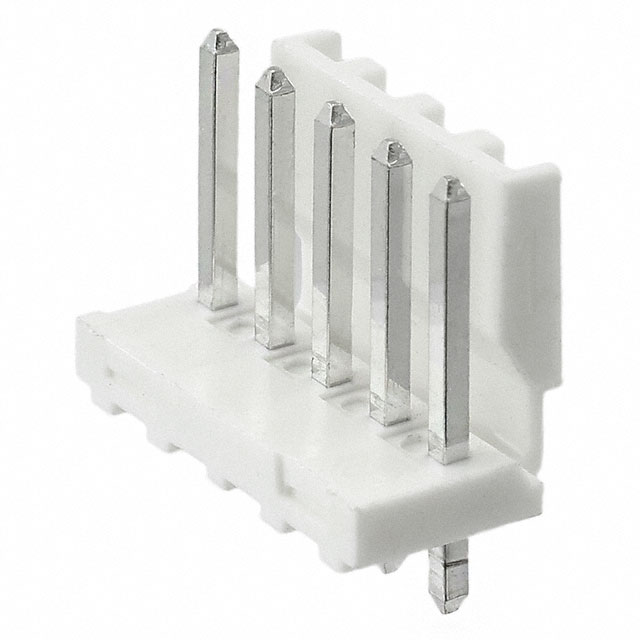

Image may be representation. See specifications for product details.

Product Overview

Part Number:	644611-5
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER VERT 5POS .156 TIN
Datasheets:	644611-5.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	6230 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6230 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 644611-5

Part Number	644611-5	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER VERT 5POS .156 TIN	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	6230 pcs	Data sheet	644611-5.pdf
Voltage Rating	600VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 1 Wall
Series	MTA-156	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	0.700" (17.78mm)	Other Names	644611-5-ND A114205
Operating Temperature	-55°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	5
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Insulation Material	Thermoplastic, Glass Filled
Insulation Height	0.545" (13.84mm)	Insulation Color	Natural
Ingress Protection	-	Features	-
Fastening Type	Friction Lock	Detailed Description	Connector Header Through Hole 5 position 0.156" (3.96mm)
Current Rating	Varies by Wire Gauge	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Copper Alloy
Contact Length - Post	0.125" (3.18mm)	Contact Length - Mating	0.450" (11.43mm)
Contact Finish Thickness - Post	150.0µin (3.81µm)	Contact Finish Thickness - Mating	150.0µin (3.81µm)
Contact Finish - Post	Tin-Lead	Contact Finish - Mating	Tin-Lead
Connector Type	Header	Applications	General Purpose
