Agastat Relays / TE Connectivity
| Part Number | 644456-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|

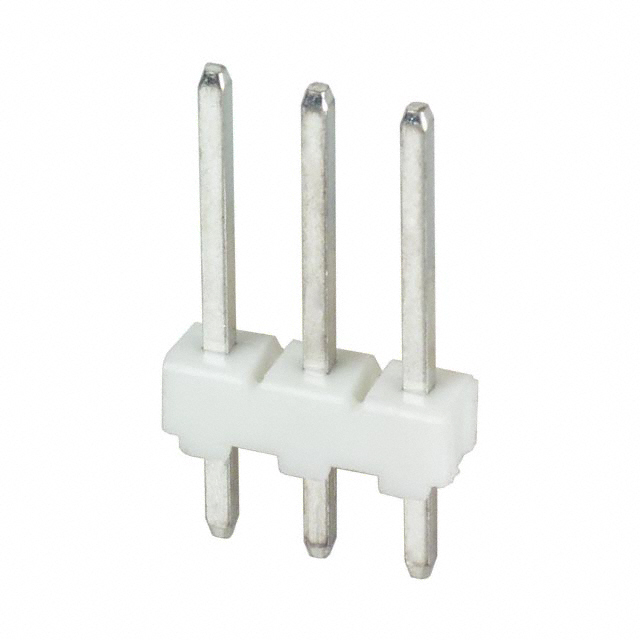

| Description | CONN HEADER VERT 3POS .100 TIN | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5232 pcs | Data sheet | 644456-3.pdf |
| Voltage Rating | 250VAC | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Unshrouded |
| Series | MTA-100 | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | 0.505" (12.83mm) | Other Names | A19351 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 3 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | - | Detailed Description | Connector Header Through Hole 3 position 0.100" (2.54mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.110" (2.79mm) | Contact Length - Mating | 0.295" (7.49mm) |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Tin-Lead |
| Connector Type | Header | Applications | General Purpose |
