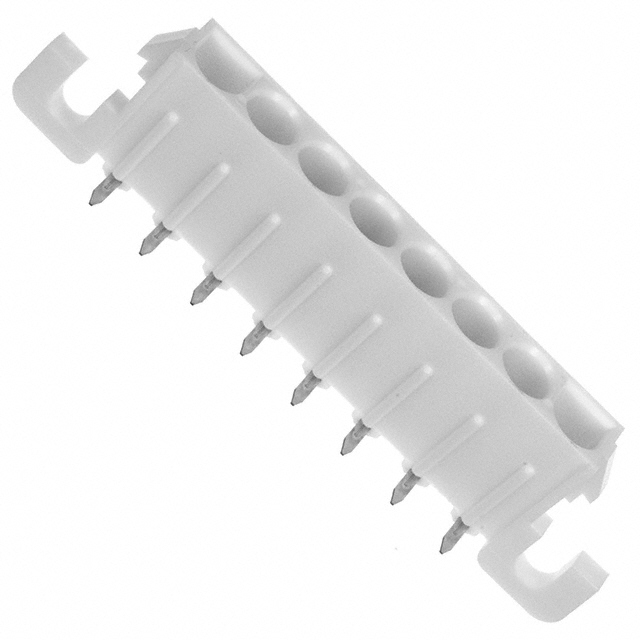

Agastat Relays / TE Connectivity
| Part Number | 643236-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 8POS RTANG .250 TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16167 pcs | Data sheet | 1.643236-1.pdf2.643236-1.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Series | Universal MATE-N-LOK |
| Row Spacing - Mating | - | Pitch - Mating | 0.250" (6.35mm) |
| Packaging | Bulk | Other Names | 643236-1-ND 6432361 A25222 |
| Operating Temperature | - | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 8 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.360" (9.14mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Mounting Flange | Fastening Type | Locking Ramp |
| Detailed Description | 8 Position Header Connector 0.250" (6.35mm) Through Hole, Right Angle Tin | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.160" (4.06mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
