Agastat Relays / TE Connectivity

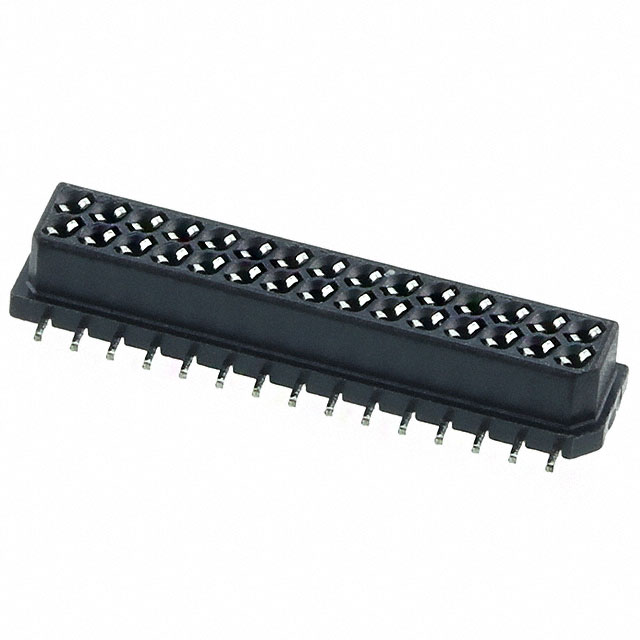

| Part Number | 6-176311-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RECEPT 30POS .049 SMT TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4975 pcs | Data sheet | 1.6-176311-0.pdf2.6-176311-0.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Style | Board to Board | Series | Fine Pitch |
| Row Spacing - Mating | 0.049" (1.25mm) | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Cut Tape (CT) | Other Names | A111374CT |
| Operating Temperature | -30°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 30 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | - |
| Insulation Height | - | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | 30 Position Receptacle Connector 0.049" (1.25mm) Surface Mount Tin |
| Current Rating | 0.5A | Contact Type | Forked |
| Contact Shape | Circular | Contact Material | - |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | - |
