5794172-4

Agastat Relays / TE Connectivity

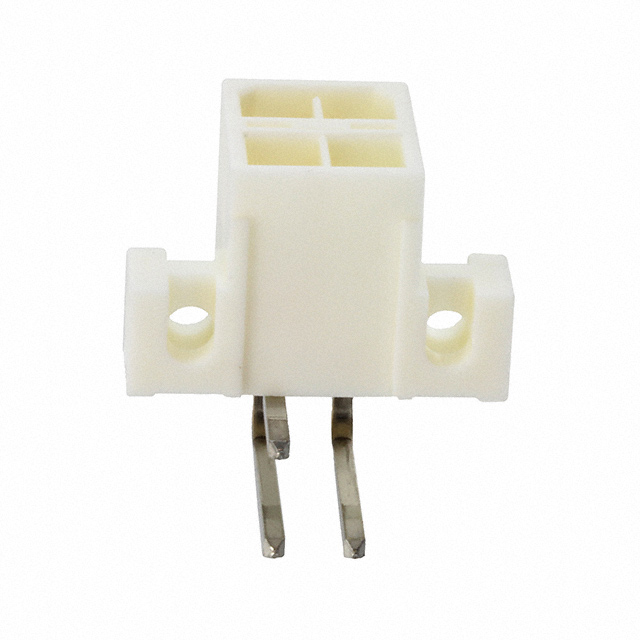

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5794172-4
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	AMP DUAC/PL 04P HDR ASSY RA
Datasheets:	5794172-4.pdf
RoHs Status	Not applicable / RoHS Compliant
Stock Condition	15899 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 15899 pcs

Reference Price (In US Dollars)

1 pcs: $2.305

10 pcs: $2.21

100 pcs: $1.825

500 pcs: $1.537

1000 pcs: $1.345

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.305

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5794172-4

Part Number	5794172-4	Manufacturer	Agastat Relays / TE Connectivity
Description	AMP DUAC/PL 04P HDR ASSY RA	Lead Free Status / RoHS Status	Not applicable / RoHS Compliant
Quantity Available	15899 pcs	Data sheet	5794172-4.pdf
Voltage Rating	600VAC	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	AMP-DUAC	Row Spacing - Mating	0.217" (5.51mm)
Pitch - Mating	0.165" (4.20mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	A117709
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	3	Number of Positions	4
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	15 Weeks	Lead Free Status / RoHS Status	Not applicable / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT)	Insulation Height	0.461" (11.70mm)
Insulation Color	Natural	Ingress Protection	-
Features	Mounting Flange	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole, Right Angle 4 position 0.165" (4.20mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	0.205" (5.21mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
