5499923-9

Agastat Relays / TE Connectivity

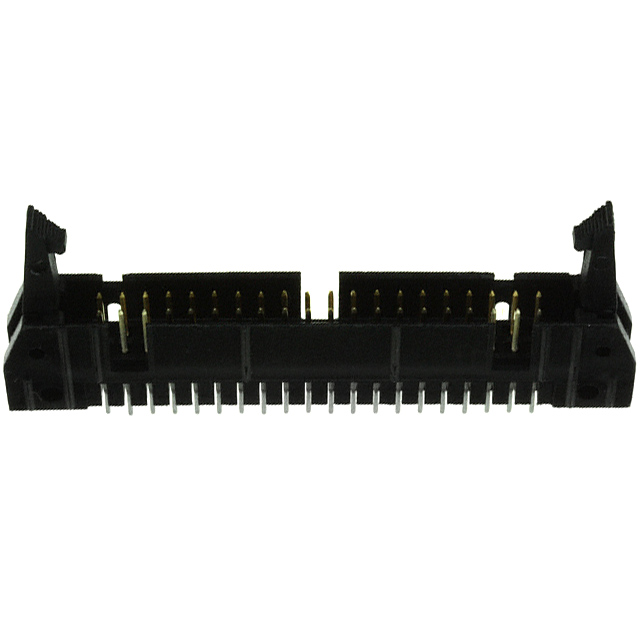

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5499923-9
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER VERT 40POS .100 GOLD
Datasheets:	5499923-9.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	11651 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 11651 pcs

Reference Price (In US Dollars)

1 pcs: $2.698

10 pcs: $2.585

100 pcs: $2.136

500 pcs: $1.799

1000 pcs: $1.574

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.698

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5499923-9

Part Number	5499923-9	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER VERT 40POS .100 GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11651 pcs	Data sheet	5499923-9.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	AMP-Latch	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tray
Overall Contact Length	0.684" (17.37mm)	Other Names	54999239 AHL40H
Operating Temperature	-65°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	40
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	22 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	-	Insulation Height	0.549" (13.94mm)
Insulation Color	Black	Ingress Protection	-
Features	Keying Slot, Mounting Flange	Fastening Type	Latch Lock/Eject Hooks, Long
Detailed Description	Connector Header Through Hole 40 position 0.100" (2.54mm)	Current Rating	1A per Contact
Contact Type	Male Pin	Contact Shape	Square
Contact Material	-	Contact Length - Post	0.155" (3.94mm)
Contact Length - Mating	0.240" (6.10mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold or Gold-Palladium	Connector Type	Header
Applications	-
