Agastat Relays / TE Connectivity
| Part Number | 5415103-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|

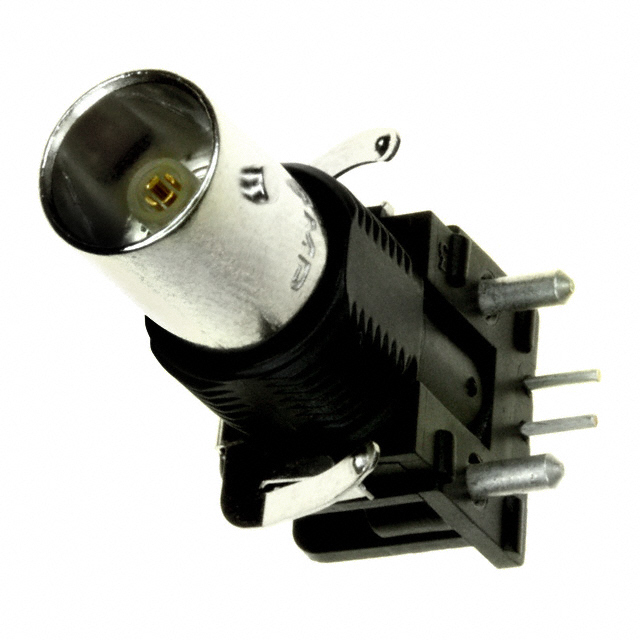

| Description | CONN BNC JACK R/A 75 OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6002 pcs | Data sheet | 5415103-1.pdf |
| Voltage Rating | 500V | Shield Termination | Solder |
| Series | - | Packaging | Tube |
| Other Names | 54151031 A99517 |
Operating Temperature | -55°C ~ 85°C |
| Number of Ports | 1 | Mounting Type | Panel Mount, Through Hole, Right Angle |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 75 Ohm |
| Housing Color | Black, Silver | Frequency - Max | 1GHz |
| Features | Board Guide, Filter, Isolated | Fastening Type | Bayonet Lock |
| Dielectric Material | Polymethylpentene (PMP) | Detailed Description | BNC Connector Jack, Female Socket 75 Ohm Panel Mount, Through Hole, Right Angle Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | BNC | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Cable Group | - |
| Body Material | Zinc | Body Finish | Nickel |
