Agastat Relays / TE Connectivity

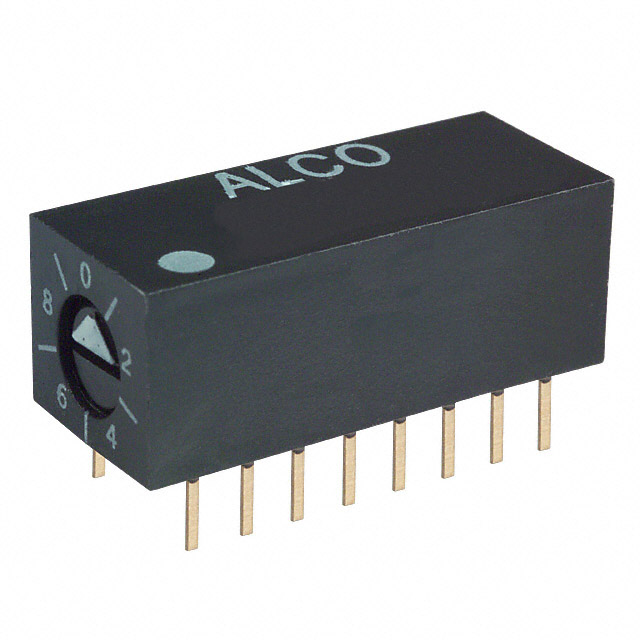

| Part Number | 53919-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | SW ROTRY DIP BCD W/COMP 0.1A 28V | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Quantity Available | 6803 pcs | Data sheet | 53919-2.pdf |
| Washable | No | Voltage Rating | 28VDC |
| Termination Style | PC Pin | Series | - |
| Pitch | 0.100" (2.54mm), Full | Packaging | Tube |
| Other Names | 450-1190 53919-2-ND 539192 A26223 A26223-ND |
Operating Temperature | - |
| Number of Positions | 10 | Mounting Type | Through Hole, Right Angle |
| Mechanical Life | - | Manufacturer Standard Lead Time | 8 Weeks |
| Length | 0.900" (22.86mm) | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Height Above Board | 0.385" (9.78mm) | Features | Sealed |
| Electrical Life | - | Detailed Description | Dip Switch BCD with Complement 10 Position Through Hole, Right Angle Rotary for Tool Actuator 100mA 28VDC |
| Current Rating | 100mA | Contact Material | Beryllium Copper |
| Contact Finish | Gold | Circuit | BCD with Complement |
| Body Material | Polyester (PET), Glass Filled | Actuator Type | Rotary for Tool |
| Actuator Level | Flush, Recessed |
