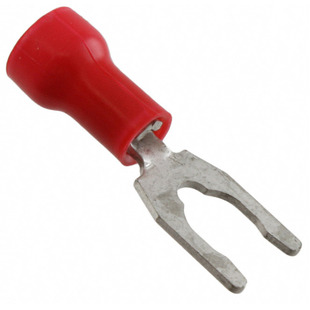

53242-6

Agastat Relays / TE Connectivity

Image may be representation. See specifications for product details.

Product Overview

Part Number:	53242-6
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN SPADE TERM 16-22AWG #10 RED
Datasheets:	53242-6.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	480560 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 480560 pcs

Reference Price (In US Dollars)

2500 pcs: $0.069

5000 pcs: $0.065

12500 pcs: $0.058

25000 pcs: $0.057

62500 pcs: $0.056

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.069

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 53242-6

Part Number	53242-6	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN SPADE TERM 16-22AWG #10 RED	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	480560 pcs	Data sheet	53242-6.pdf
Wire Gauge	16-22 AWG	Width - Outer Edges	0.294" (7.47mm)
Tongue Inside Opening	0.190" (4.83mm)	Termination	Crimp
Terminal Type	Spring, Snap	Stud/Tab Size	10 Stud
Series	Plasti-Grip	Packaging	Tape & Reel (TR)
Other Names	53242-6-ND 532426 A100664TR	Mounting Type	Free Hanging (In-Line)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	Poly-Vinyl Chloride (PVC)
Manufacturer Standard Lead Time	4 Weeks	Length - Termination	0.465" (11.81mm)
Length - Ring Center to Termination	0.281" (7.14mm)	Length - Overall	0.969" (24.61mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Diameter	0.150" ~ 0.200" (3.81mm ~ 5.08mm)
Insulation	Insulated	Features	Serrated Termination
Detailed Description	Red 10 Stud Spade Terminal Connector Crimp 16-22 AWG	Contact Material	Brass
Contact Finish	Tin	Color	Red
