52409-1

Agastat Relays / TE Connectivity

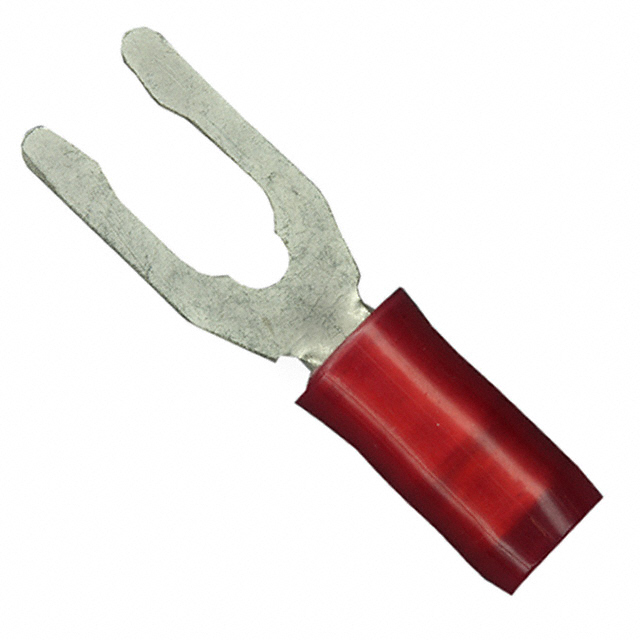

Image may be representation. See specifications for product details.

Product Overview

Part Number:	52409-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN SPADE TERM 16-22AWG #6 RED
Datasheets:	52409-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	385550 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 385550 pcs

Reference Price (In US Dollars)

5000 pcs: $0.082

10000 pcs: $0.076

15000 pcs: $0.075

25000 pcs: $0.073

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.082

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 52409-1

Part Number	52409-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN SPADE TERM 16-22AWG #6 RED	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	385550 pcs	Data sheet	52409-1.pdf
Wire Gauge	16-22 AWG	Width - Outer Edges	0.250" (6.35mm)
Tongue Inside Opening	0.140" (3.56mm)	Termination	Crimp
Terminal Type	Spring, Snap	Stud/Tab Size	6 Stud
Series	PIDG	Packaging	Tape & Reel (TR)
Other Names	52409-1-ND A28158 A28158-ND A28158TR	Mounting Type	Free Hanging (In-Line)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	Polyamide (PA), Nylon
Manufacturer Standard Lead Time	4 Weeks	Length - Termination	0.414" (10.52mm)
Length - Ring Center to Termination	0.238" (6.05mm)	Length - Overall	0.933" (23.70mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Diameter	0.080" ~ 0.125" (2.03mm ~ 3.18mm)
Insulation	Insulated	Features	Serrated Termination
Detailed Description	Red 6 Stud Spade Terminal Connector Crimp 16-22 AWG	Contact Material	Phosphor Bronze
Contact Finish	Tin	Color	Red
