5228686-1

Agastat Relays / TE Connectivity

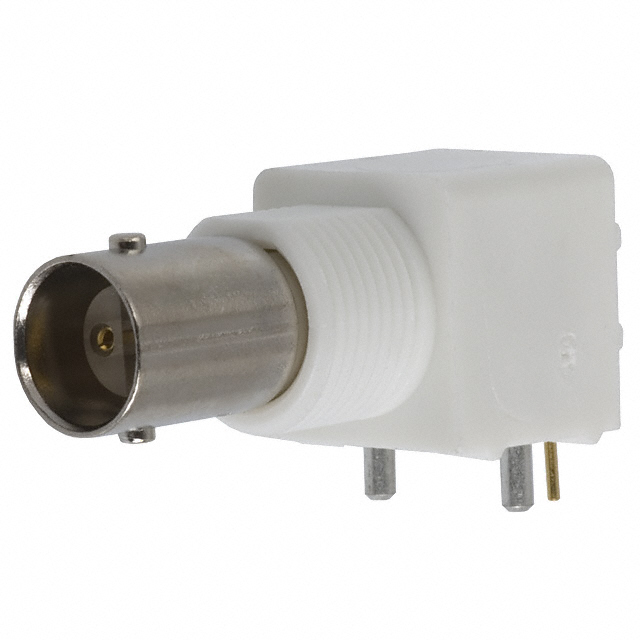

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5228686-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN BNC TWIN JACK R/A PCB
Datasheets:	5228686-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7686 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 7686 pcs

Reference Price (In US Dollars)

1 pcs: $3.916

10 pcs: $3.746

35 pcs: $3.406

70 pcs: $3.235

105 pcs: $3.15

280 pcs: $2.81

525 pcs: $2.639

1015 pcs: $2.333

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.916

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5228686-1

Part Number	5228686-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN BNC TWIN JACK R/A PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7686 pcs	Data sheet	5228686-1.pdf
Voltage Rating	500V	Shield Termination	Solder
Series	Coaxicon	Packaging	Bulk
Other Names	52286861 A32412	Operating Temperature	-55°C ~ 85°C
Number of Ports	1	Mounting Type	Panel Mount, Through Hole, Right Angle
Mounting Feature	Bulkhead - Front Side Nut	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	200	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insertion Loss	-
Ingress Protection	-	Includes	-
Impedance	Non-Constant	Housing Color	Natural, Silver
Features	Board Guide, Isolated	Fastening Type	Bayonet Lock
Dielectric Material	Polymethylpentene (PMP)	Detailed Description	BNC, Twinaxial Connector Jack, Female Socket and Male Pin Non-Constant Panel Mount, Through Hole, Right Angle Solder
Contact Termination	Solder	Connector Type	Jack, Female Socket and Male Pin
Connector Style	BNC, Twinaxial	Center Contact Plating	Gold
Center Contact Material	Brass; Phosphor Bronze	Cable Group	-
Body Material	Zinc	Body Finish	Nickel
