5225059-3

Agastat Relays / TE Connectivity

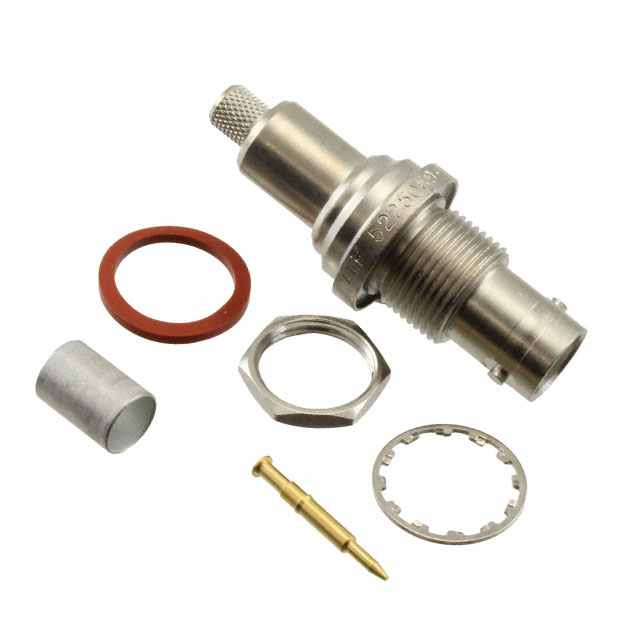

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5225059-3
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN SHV JACK STR CRIMP
Datasheets:	5225059-3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2139 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 2139 pcs

Reference Price (In US Dollars)

1 pcs: $16.025

10 pcs: $14.466

25 pcs: $13.86

50 pcs: $12.994

100 pcs: $12.56

250 pcs: $11.868

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$16.025

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5225059-3

Part Number	5225059-3	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN SHV JACK STR CRIMP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2139 pcs	Data sheet	5225059-3.pdf
Voltage Rating	5000V	Shield Termination	Crimp
Series	Coaxicon	Packaging	Bulk
Other Names	5225059-3-ND A122878	Operating Temperature	-65°C ~ 200°C
Number of Ports	1	Mounting Type	Panel Mount
Mounting Feature	Bulkhead - Front Side Nut	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	500	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insertion Loss	-
Ingress Protection	-	Includes	6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
Impedance	Non-Constant	Housing Color	Silver
Features	-	Fastening Type	Bayonet Lock
Dielectric Material	Polytetrafluoroethylene (PTFE)	Detailed Description	SHV Connector Jack, Male Pin Non-Constant Panel Mount Crimp
Contact Termination	Crimp	Connector Type	Jack, Male Pin
Connector Style	SHV	Center Contact Plating	Gold
Center Contact Material	-	Cable Group	RG-59, 59A, 59B, 62, 62A, 62B, 124, 140, 210
Body Material	-	Body Finish	Nickel
